Overview

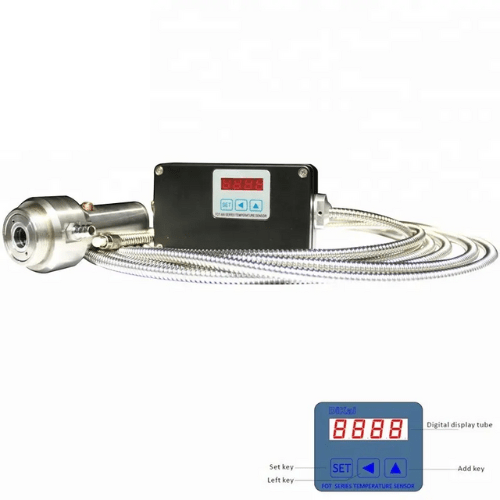

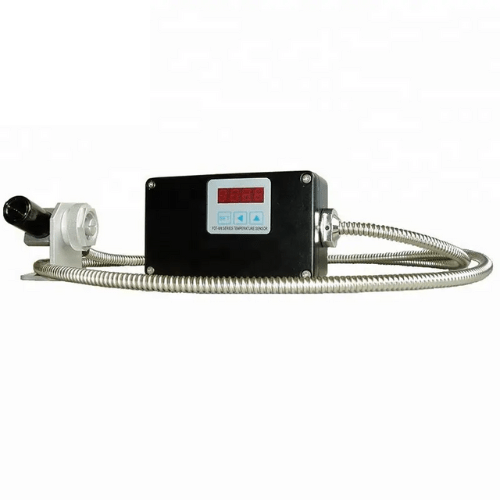

Hospitality Enviro Tech fiber optic pyrometer FOT-6 is an advanced optical pyrometer designed for challenging measuring environments, such as those with high temperatures, dust, or smoke. Equipped with an Air Purge Head and LED display, this non-contact infrared thermometer offers precise temperature measurements in the range of 400 to 1800 degrees across its four models. The FOT-6 combines the technologies of infrared pyrometry and optic fiber sensing, featuring a small fixed optical probe, stainless steel housing, micro-computer module, and signal output cable. This innovative design ensures fast response, high accuracy, repeatability, and exceptional stability in temperature measurement applications.
Technical Specifications
| Temperature Resolution | 32.9 °F (0.5 ℃) |
| Response Time | ≤5ms |
| Emissivity | 0.10 to 1.00 adjustable (0.01) |
| Distance Coefficient | 160:1 |
| Minimum Spot Size | 0.0787 in (2 mm) |
| Analog Output | 0 mA to 20 mA /4 mA to 20 mA ,0 V to 5 V |
| Digital Output | RS 485 interface |
| Powder Supply | 24 VDC ± 20% 500 mA |
| Anti Disturbance | JB/T 9233.11 to 1999 |
| Thermal Shock | GB/T 2423.1,GB/T 2423.2 |
| Weight | 1.6534 lb (0.75 KG) |
