Overview
Hospitality Enviro Tech Electromagnetic Ultrasonic Thickness Gauge is a portable electromagnetic ultrasonic (abbr. as “EMAT”) thickness gauge launched by the manufacturer to be used without coolant or direct contact on materials of metal or magnetism, based on electromagnetic-acoustic transduction. Due to unaffectedness by surface of the object, it can be applied to those with rust, oxide layer or coating, like oil pipe or aircraft parts, saving the effort to clear them off. Angle shift of the probe has no effect on the result, with the available gauge range 2~300mm and the precision up to 0.01mm. This instrument can also work on hot objects such as forged pieces, radiators and heat exchangers, assisted by necessary Kittings supplied by the manufacturer. There’re optional functionalities like B-Scan, RS-485 BUS networking, GPRS wireless communicating and SMS for the users to realize their modern dreams on NDT instruments.
Features
- Measuring thickness in rough metal or magnetic surfaces, addressing poor ultrasonic coupling.
- Measuring precise thickness of metal beneath coatings like rust, oxide, or artificial materials.
- To work under special situation that there’s air gap or some obstacle stuck between the transducer and the metal object.
- Measuring thickness on high-temperature objects up to 572 °F (300 °C) and at-and-away measurements up to 1112 °F (600 °C) without data loss or tool/operator damage.
- To make the job of gauging go on under severely cold weather (lowest to – 104 °F (40 °C))
Technical Specifications
| Transmitting Pulse | Square Wave Pulse; Transmitting Pulse Voltage: 50 V to 350 V, adjustable with 25 V per increment. Pulse Width: 50 ns to 800 ns, adjustable with 5 ns per increment. |
| Working Mode | Single/Dual |
| Damping | 400 Ω /80 Ω |
| Working Frequency | 300 KHz to 4 MHz |
| Gain | 0.0 dB to 110.0 dB. Optional Step shift: With smart acceleration |
| Gauge Availability | 0.08 in to 11.81 in (2.0 mm to 300 mm) at 45# steel velocity. precision up to 0.0004 in (0.01 mm) |
| Rectification Options | 1/2 PW, 1/2 NW, FW & RF |
| Gate | Dual-gate thickness gauging mode by auto crest. Gauge spot mode optional: Front/Crest |
| Display | 4.3” TG TFT-color LCD; Resolution: 31.5 in x 18.9 in (800 mm × 480 mm) |
| Receiving Gain Control | Automatic, program control |
| Probe Delay Availability | 0 μs to 999.9 μs |
| PRF | 25 HZ to 3200 HZ |
| Vertical Linearity Error | ≤3 % |
| Horizontal Linearity Error | ≤0.4 % |
| Surplus Sensitivity | ≥60 dB (200 Φ2 FBH, narrow band) |
| Driver | Permanent Magnet |
| Dynamic Range | ≥30 dB |
| Reject | 0 to 90 % |

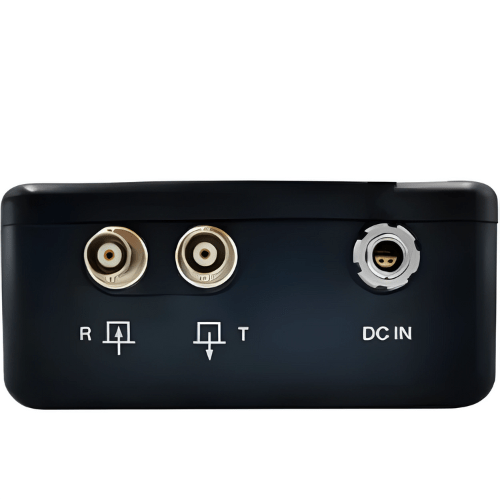

| Ports | Probe Cable Connector: BNC /(customizable) ; |
| Power Supply | USB Large-capacity Li battery without memory effect; Battery Life: 8 hrs |
| Grade of Protection | IP54 |
| Ambient Temperature | -22 °F to 122 °F (-30 °C to 50 °C) |
| Relative Humidity | 20 % to 95 % |
| Weight | 2.2 lbs (1.0 Kg) (with battery) |
| Dimension (L×W×H) | Upper Part: 8.46 in x 4.96 in x 2.09 in (215 mm × 126 mm × 53 mm) Lower Part: 8.46 in x 4.09 in x 1.65 in (215 mm × 104 mm × 42 mm) |
