Overview

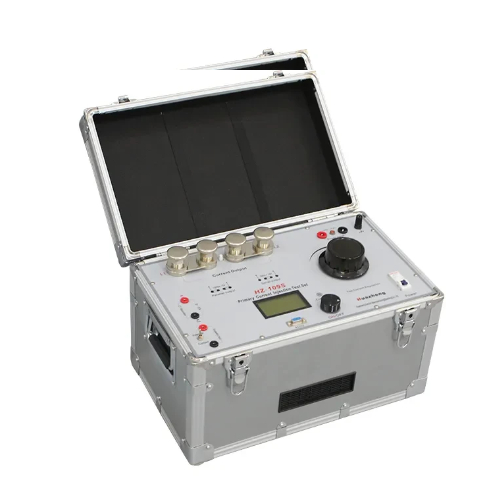

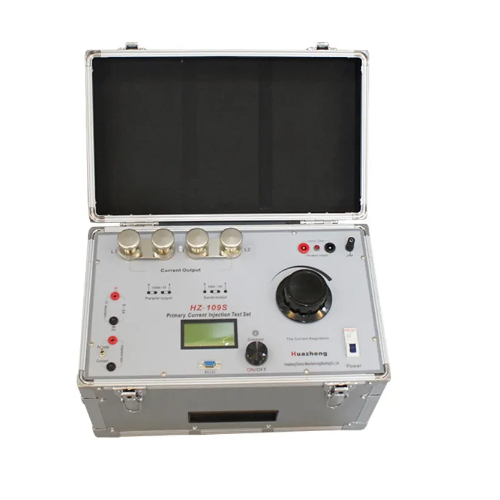

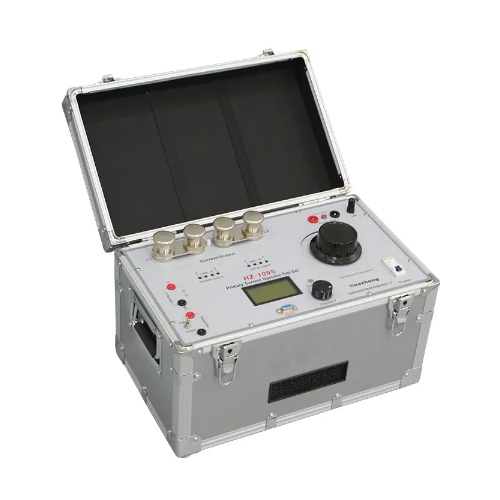

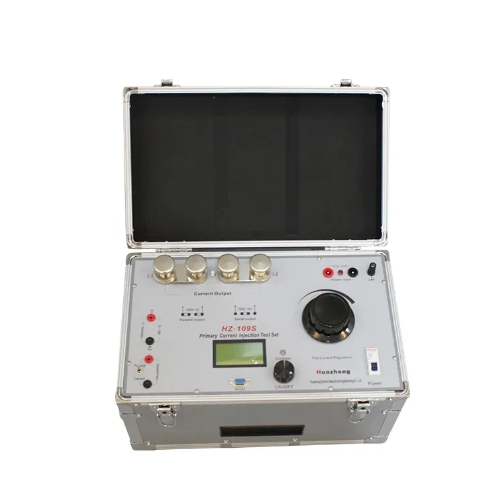

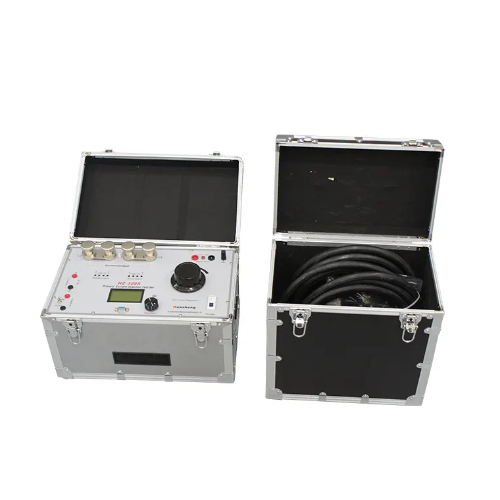

Hospitality Enviro Tech Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S primary injection test set could simultaneously display primary current, secondary current, turn ratio and the actuation time of stopwatch connection position (electric potential). The product possesses the characteristics of nice appearance, large output capacity, small size, light weight and so on with external aluminum alloy case and PC panel. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test. Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S primary injection test set could simultaneously display primary current, secondary current, turn ratio and the actuation time of stopwatch connection position (electric potential). The product possesses the characteristics of nice appearance, large output capacity, small size, light weight and so on with external aluminum alloy case and PC panel. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test.
Technical Specifications
| Input Power Supply: AC | 220 V·25 A,50 Hz |
| Output Current: AC | 1000 V A·5 V or 500 A·10 V |
| LCD Screen Digital Display | Simultaneous display of primary current and secondary current as well as the turn ratio |
| The Range of Primary Current: 0 to 1100 A, Resolution:0.1A;
The Range of Secondary Current: 0 to 6 A; Resolution:0.001A. |
|
| Stopwatch: 0.0001 to 999.99 S precision ±5 significant figures. | |
| Precision | TRUE RMS ±0.5% |
| Usage Environment | |
| Relative humidity <80% | |
| Weight | 61.72 lb (28 kg) |
