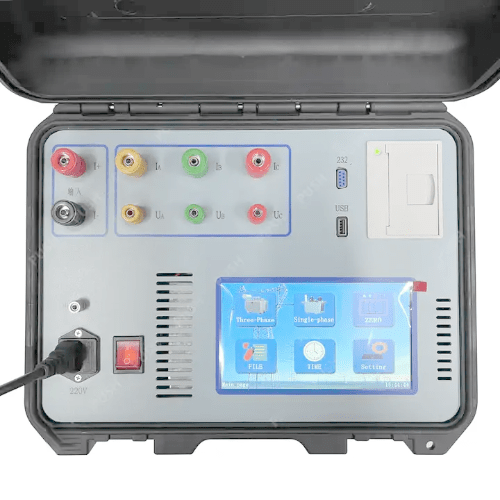

Features
- Power terminals, voltage regulator
- Test product terminals, current and voltage lines
- AC220 V, power socket, switch, fuse
- USB, U disk interface, data storage
- Terminal, instrument ground
- LCD, touch operation, parameter input
- Printer, data printing
Technical Specification
| Short Circuit Impedance | 0% to 100% |
| Frequency (Power Frequency) | 45 Hz to 65 Hz |
| Current (Range Automatic) | 0.10 to 20A |
| Voltage (Range Automatic) | 15 v to 400V |
| Instrument Display | 5 digits |
| Ambient Temperature | 14° F to 104° F (-10° C to 40° C) |
| Relative Humidity | ≤85% RH |
| Voltage (Range Automatic) | 15 V to 400 V
± (reading×0.2% + 3 digits) ±0.04% (range) |
| Current (Range Automatic) | 0.10 A to 20 A
± (reading × 0.2%+3 digits) ±0.04% (range) |
| Power | COSΦ >0.15
± (reading × 0.5% + 3 digits) |
| Measurement Accuracy | ±0.1% |
| Short Circuit Impedance | 0% to 100% |
| Measurement Accuracy | ±0.5% |
| Repeat Stability | ratio difference <0.2%, angular difference <0.02° |
| Instrument Display | 5 digits |
| Instrument Protection Current | The test current is greater than 18A, the internal relay of the instrument is disconnected, and overcurrent protection is provided. |
| Working Power | AC 220 V ±10% 50 Hz ±1 Hz |
| Dimensions | 14.1 in × 11.4 in × 6.6 in (360 mm × 290 mm × 170 mm) |
| Weight | 10.6 Ib (4.85 kg) |
