Features
- Single-power input, internal digital sine wave test source
- Measures phase angle, turn ratio, and “Non integral point”
- Conducts single-phase and three-phase winding automatic tests
- Displays results in digit and hexagon vector diagram
- Blind test function for automatic connecting method
- Tapping test function for quick TTR and TTR error
- Measures turns ratio and voltage TTR

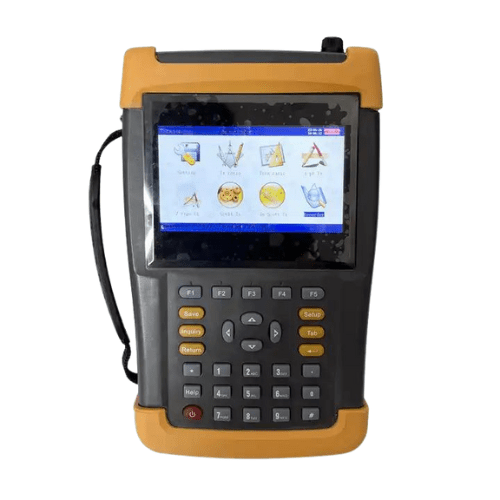

- 6 in (14.22 cm) LCD for visualized data display
- Small size and light weight for easy portability
- Built-in rechargeable lithium battery for on-site testing
Technical Specifications
| TTR measurement range | 0.8 to 10000 |
| High measurement speed | three-phase test can be completed within 40 seconds |
| Voltage measurement accuracy on HV side | 0.05% |
| Voltage measurement accuracy on LV side | 0.1% |
| Phase angle measurement accuracy | 0.1° |
| Volume | 10.24 in x 6.3 in x 2.36 in |
