Features
- Non-contact technology breakthrough for safe, fast grounding resistance tests
- Measures loop grounding system without disconnecting down leads
- Clamp tester measures ground faults immeasurable by traditional methods
- Manufacturing license: 2016E119 to 44
- Features audible or visible alarm, data memory, and data hold
Technical Specifications
| Resistance Range | 0.010 ohm to 1200 ohm |
| Current Range | 0.00 mA to 20.0 A |
| Resistance Measurement Accuracy | ± (1% rdg + 0.01 ohm) |
| Current Measurement Accuracy | (2.5% rdg + 1 mA) |

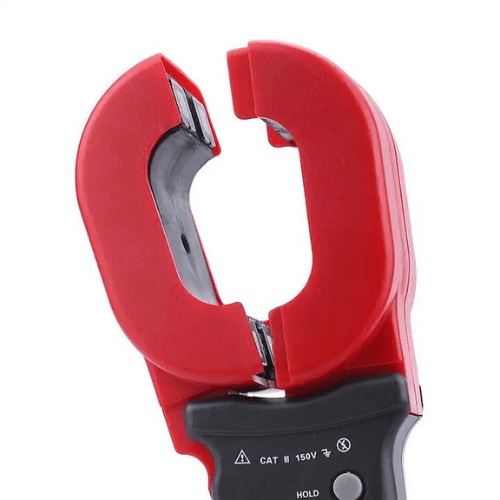

| Clamp Size | 2.56 in x 1.26 in (65 mm × 32 mm) |
| Power Supply | 6 VDC (4 PCS of No.5 Alkaline dry batteries) |
| Single Measurement Time | 0.5 second |
| LCD Screen | 4 Digits LCD display, 1.85 in x 1.12 in (47 mm x 28.5 mm) |
| RS232 Interface | Optional |

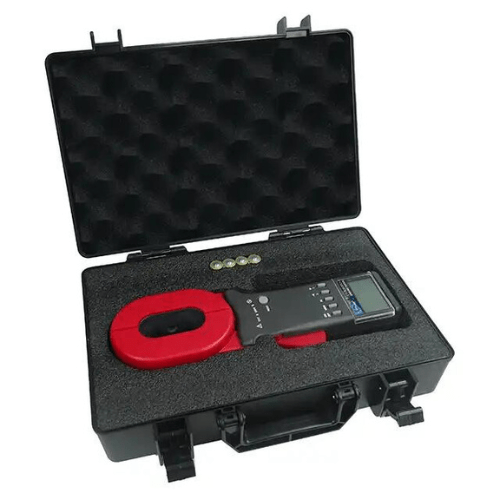

| Accessories | Tester:1 PCS; Test Ring:1 PCS; Instrument Case: 1 PCS |
