Features
- Absolute conductivity measurement for non-ferrous metals (Ti – Ag)
- Monitor aerospace and automotive heat treatment processes
- Assess aluminium alloy strength and hardness
- Measure conductivity of non-oxidized aluminium
- Evaluate purity of non-ferrous metals
- Test resistivity of conductive materials
- Analyze thermal properties of materials
Technical Specifications
| Measurement technology | Eddy current |
| Operating frequency | 60 KHz |
| Display screen | Monochrome |
| Instrument case | Anti-intense impact, water-proofing polyester Match the fixed belt the leather protective covering |
| Power supply | High capacity, high performance lithium polymer battery Not back light illuminate may keep on working about 100 hours. |
| Measuring range | 1% IACS to 105% IACS (0.58 MS/m to 61 MS/m) |
| Distinguishing rate | 0.1% IACS |
| Measuring accuracy | 41 °F to 104 °F (5 °C to 40 °C); 23% IACS: ± 0.1% IACS 100% IACS: ± 0.3% IACS |
| Temperature compensation | 41 °F to 104 °F (5 °C to 40 °C);Automatic compensation function |
| Normal work environment | Relative humidity: 0 to 95% Operating temperature: 41 °F to 104 °F (5 °C to 40 °C) |

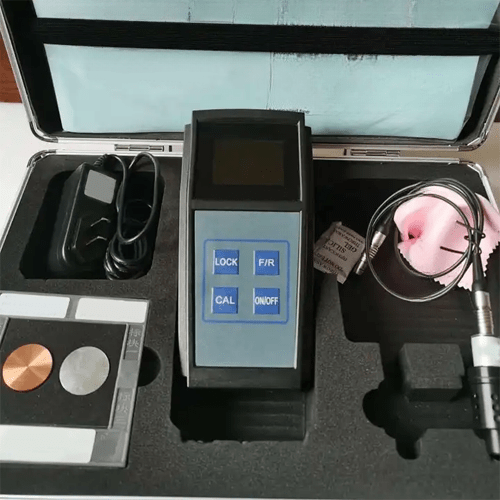

| Fitting | Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
| Probe Diameter | 0.5 in (12.7 mm); (Applicable to minimum measuring area diameter at 60 KHz is 0.512 in (13 mm).) |
| Weight | 0.66 lb. (300 g), Contain battery |
| Size | 7.09 in x 2.99 in x 1.38 in (180 mm x 76 mm x 35 mm) |
