Overview

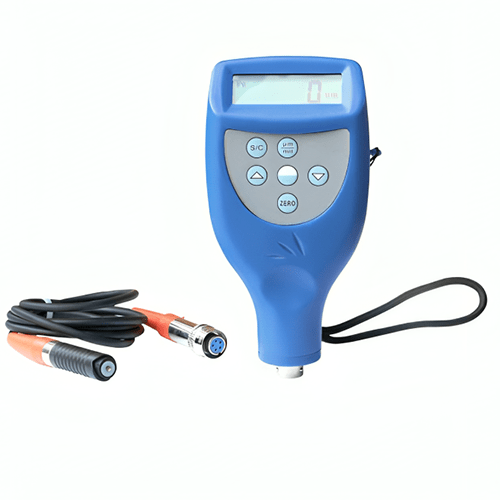

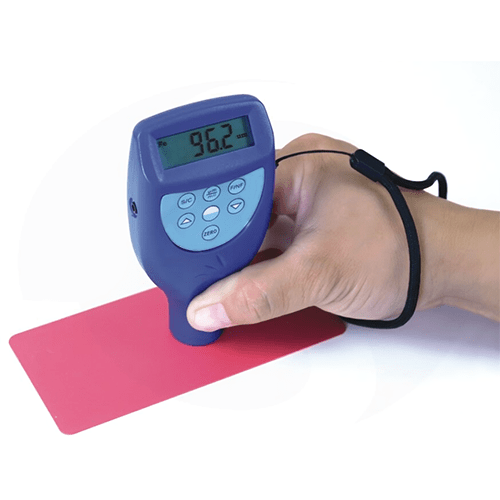

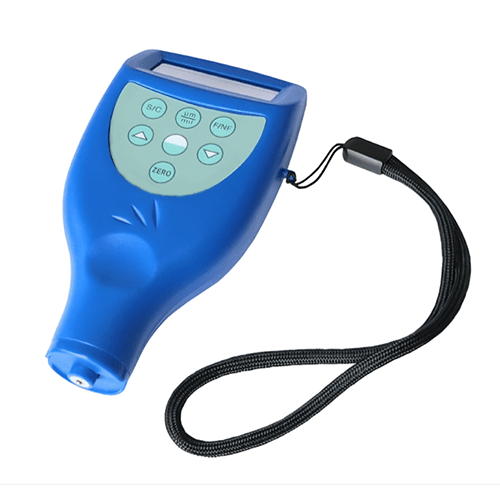

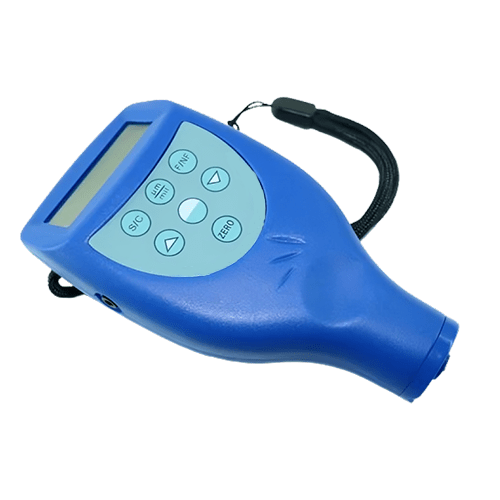

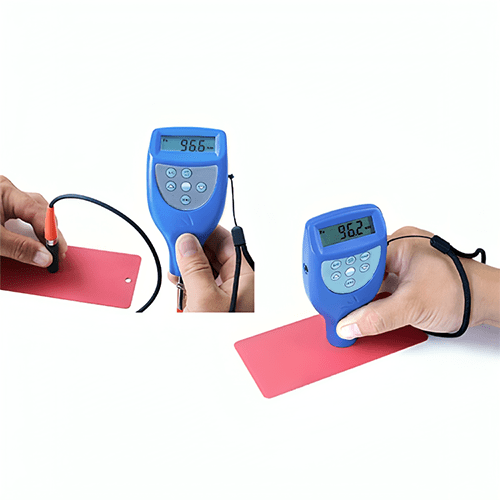

Hospitality Enviro Tech Dry Film Paint Coating Thickness Gauge use magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non-magnetic coatings such as paints, zinc etc. on steel (F: ferrous probe) and insulating materials on non-ferrous substrates (Non-ferrous.). The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.
Technical Specifications
| Measuring Range | 0 μm to 1250 μm or 0 in to 1.96 in (0 mm to 50 mm) (Also can ask for larger range) |
| Resolution | 0.1 or 1 |
| Accuracy | ± 1 to 3 % or ± 2.5 μm |
| Min. Radius Work Piece | F: Convex 0.05 in (1.5mm) or Concave 0.98 in (25mm) N: Convex 0.11 in (3mm) or Concave 1.96 in (50mm) |
| Min. Measuring Area | 0.23 in2 (6 mm2) |
| Min. Sample Thickness | 0.01 in (0.3mm) |
| Metric/ Imperial | Convertible |
| Power Supply | 4 x 1.5V AA Battery |
| Battery Indicator | Low battery indicator |
| Operating Conditions | 32 °F to 104 °F (0 °C to 40 °C) ;10 %RH to 90 %RH |
| Dimension | 4.96 in x 2.55 in x 1.06 in (126 mm x 65 mm x 27 mm) |
| Weight | 0.17 lbs (81g) |
| Optional Accessories | USB cable, Software, Adapter for Bluetooth |
