Features

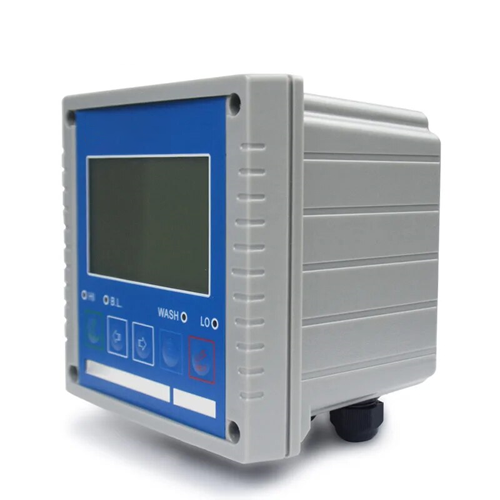

- LCD display
- English menu
- Easy operation
- 4 mA to 20 mA analog output
- 2 relay aram output
- High precision, high stabiligy
Technical Specifications
| Measuring range | 0 to 20000 mg/ITSS |
| Response time | 60 s |
| Light Source | 860 nm |
| Maximum error | ±1%FS |
| Service Life | 5 Years |
| Repeatability | ±0.5 % FS |
| Working Temperature | -20 ℃ to +60 ℃ |
| Storage Temperature | -20 ℃ to +70℃ |
| IP grade | IP68 |
| Working pressure | ≤10 Bar |
| Calibration | Multi-point calibration |
| Power supply | 220 V(meter); 24 V(Sensor) |
| Weight | 0.7 kg (meter); 0.7 kg (Sensor) |
