Overview

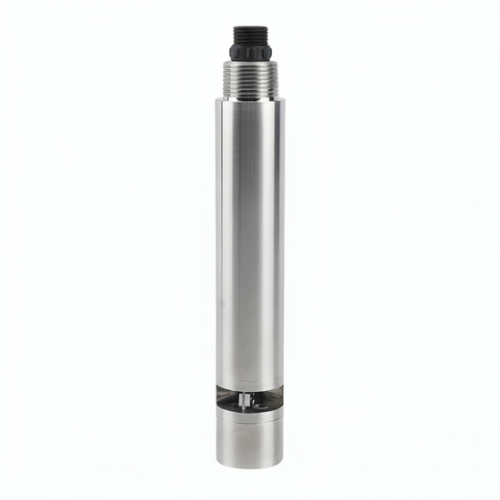

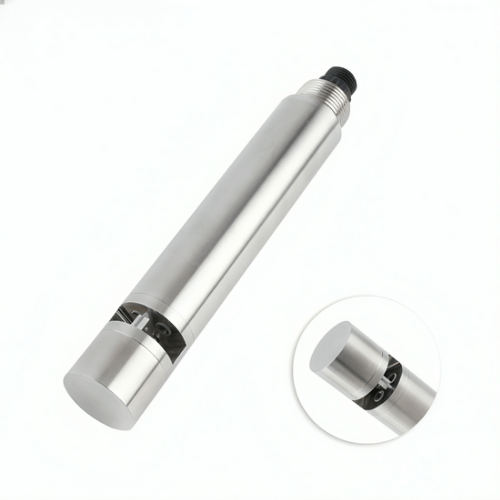

Hospitality Enviro Tech Digital Wastewater Treatment Turbidity Sensor Many organic compounds dissolved in water are absorbent to ultraviolet light. Therefore, the amount of dissolved organic pollutants in the water can be accurately measured by measuring the extent to which these organics absorb UV light at 254nm. The COD-408 online COD sensor adopts two light sources; one is ultraviolet light for measuring COD content in water and the other is reference light for measuring turbidity in water.
Features
- No reagents, no pollution, more economical and environmental protection
- Small size, easy installation, and continuous water quality monitoring
- Measure COD, turbidity, and temperature parameters
- Automatic compensation for turbidity interference

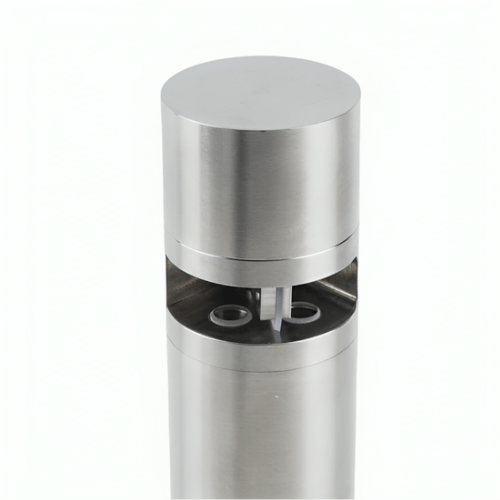

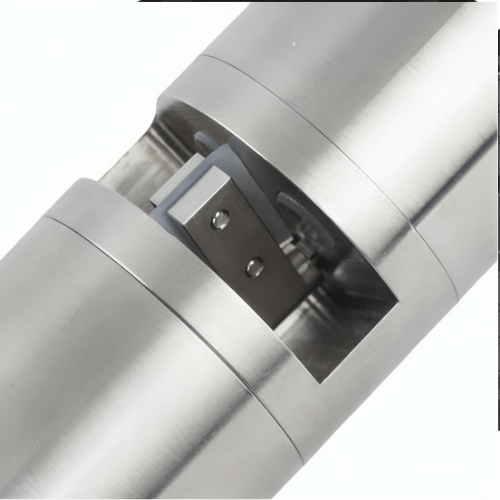

- With a cleaning brush to prevent bio-adhesion
- Small drift, fast response, more accurate measurement
- Excellent stability even for long-term monitoring
Technical Specifications
| Scale Range COD And Turbidity | 0 to 200mg/L equiv. KHP 0 to 200 NTU 0 to 500mg/L equiv. KHP 0 to 400 NTU 0 to 1500mg/L equiv. KHP 0 to 1000 NTU |
| Measuring Principle | Dual wavelength ultraviolet absorption method |
| BOD Range | 0 to 1300 mg/L |
| TOC Range | 0 to 1200 mg/L |
| COD Precision | ±5% FS |
| COD Resolution | 0.1 mg/L |
| Turbidity Accuracy | ±5% FS |
| Turbidity Resolution | 0.1 NTU |
| Calibration Method | Two-point calibration |

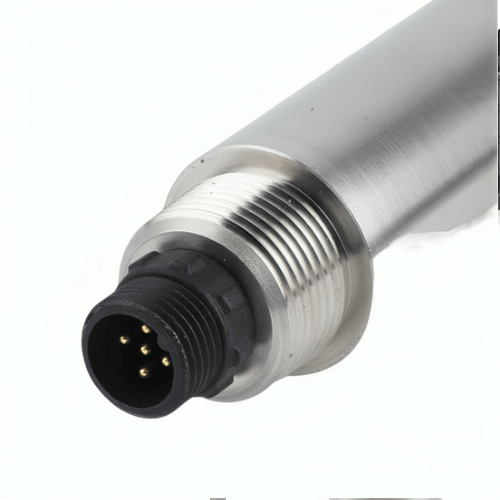

| Output Method | RS-485 (Modbus/RTU) |
| Power Supply | 12 to 24 V DC |
| Power Consumption | 0.3 W @12 V |
| Working Conditions | 32 to 113 °F (0 to 45℃), 14.50 Psi (<0.1 MPa) |
| Storage Temperature | 23 to 149 °F (-5 to 65℃) |
| Protection Level | IP68 |
