Overview

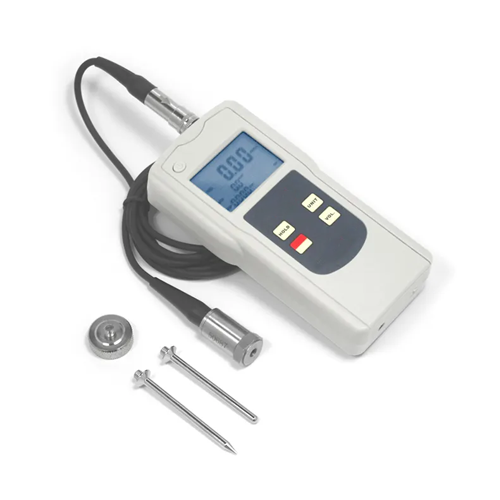

GAOTEK Digital Vibrometer with Displacement Tester has the capability to simultaneously display parameters such as “Displacement,” “Velocity,” and “Acceleration.” It is specifically designed for on-site measurements of various mechanical vibrations to detect imbalances and misalignment in moving machinery. The device is used for quality control, monitoring running time, and gathering data for equipment maintenance purposes. It utilizes high-performance accelerometers to ensure accurate and replicable measurements. Additionally, it includes a function for measuring bearing conditions.
Features
- Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.
- In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
- Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
- Individual high quality accelerometer for accurate and repeatable measurements.
- Wide frequency range (10Hz to 10kHz) in acceleration mode.
- AC output socket for headphones and recording.
- Optional headphones for use as electronic stethoscope.
- Bearing condition monitoring function.
- Use USB data output with connection PC.
Technical Specifications
| Transducer | Piezoelectric accelerometer |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement: 0 to 0.15in (0.001-4.000 mm) equivalent peak-peak / 0.04 to 160.0 mil |
| Velocity: 0.1 to 400.0 mm/s true RMS / 0.004 to 16.00 inch/s | |
| Acceleration: 0.1 to 400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g | |
| Frequency Range | Displacement: 10 Hz. to 1 kHz. |
| Velocity :10 Hz. to 1 kHz. | |
| Acceleration: 10 Hz. to 10 kHz. | |
| Operating Conditions | Temperature: 32 °F to 122 °F(0 °C to 50 ℃) |
| Humidity: below 95% RH | |
| Analogue Output | AC output 0 to 2.0 V peak full scale (load resistance: above 10k) |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Size | 5.51 in x 2.76 in x 1.18 in (140 mm x 70 mm x 30 mm) |
| Weight | 0.29 lb (130 g) (Not including Batteries) |

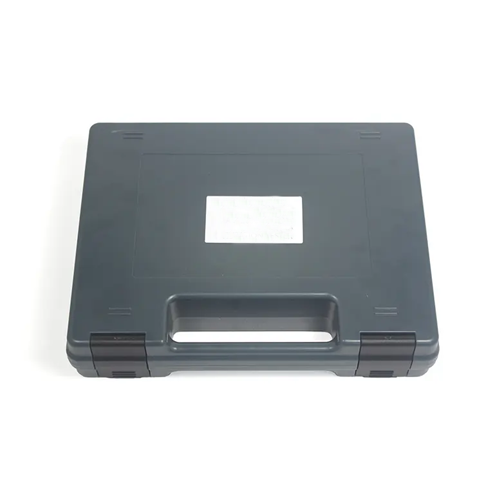

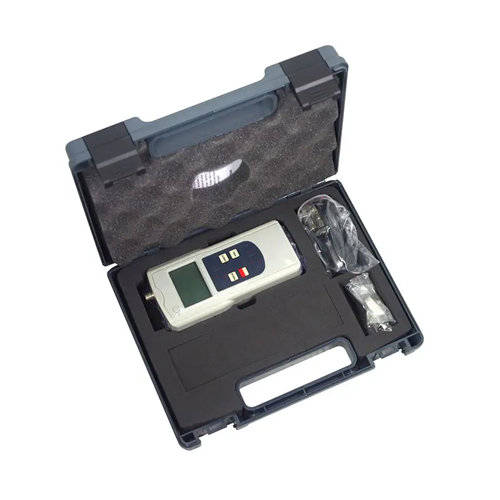

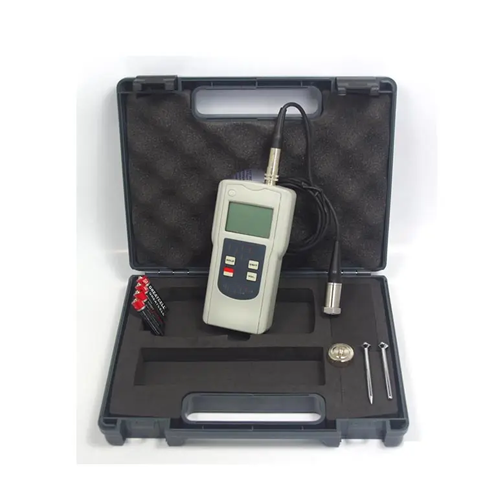

| Standard Accessories | Main UnitMagnetic Suction Seat
Probe (cone) / Probe (spherical) Portable Box Brochures Carrying Case Operational Manual |
| Optional Accessories | HeadsetUSB data output
RS-232 data output Bluetooth data output |
