Overview
Hospitality Enviro Tech Digital Vibration Test meter, the Vibration Tester can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously; Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Features
- Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously
- In accordance with ISO 2954, used for periodic measurements
- Specially designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning
- Individual high-quality accelerometer for accurate and repeatable measurements
- Wide frequency range (10Hz to 10kHz) in acceleration mode
- AC output socket for headphones and recording
- Optional headphones for use as electronic stethoscope
- Bearing condition monitoring function
- Use USB data output with connection PC
- Provide Bluetooth data output choice
Technical Specifications
| Accuracy | ± 5% + 2 digits |
| Measurement Range | Displacement: 3.937008e-5 in to 0.16 in (0.001 mm to 4.000 mm) equivalent peak-peak / 0.0015 in to 6.30 in (0.04 to 160.0 mm) |
| Velocity: 0.0039 in/ s to 15.74 in/s (0.1 mm/s to 400.0 mm/s) true RMS / 0.004-16.00 inch/s | |
| Acceleration: 0.32 ft/s2 to 1312.34 ft/s2 (0.1m/s2 to 400.0 m/s²) equivalent peak/ 0.0-40g | |
| Frequency Range | Displacement: 10 Hz to 1 kHz. |
| Velocity :10 Hz to 1 kHz. | |
| Acceleration: 10 Hz to 10 kHz. | |
| Operating Conditions | Temperature: 32˚ F to 122˚ F (0˚C to 50℃) |
| Humidity: below 95% RH | |
| Analogue Output | AC output 0 to 2.0 V peak full scale (load resistance: above 10 k) |

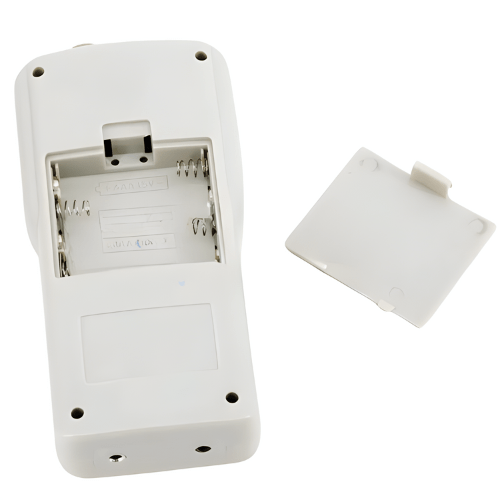

| Power Supply | 4 x 1.5 AAA (UM-4) Battery |
| Size | 5.511 in x 2.75 in x 1.18 in (140 mm x 70 mm x 30 mm) |
| Weight | 0.29 lbs (130 g) (Not Including Batteries) |
