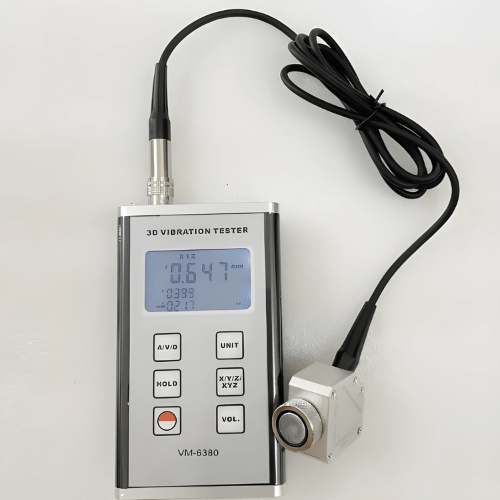

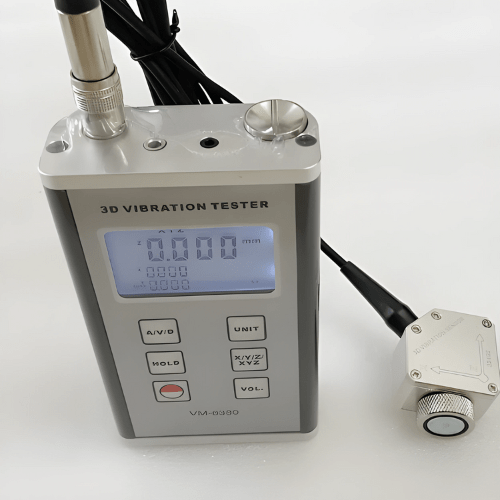

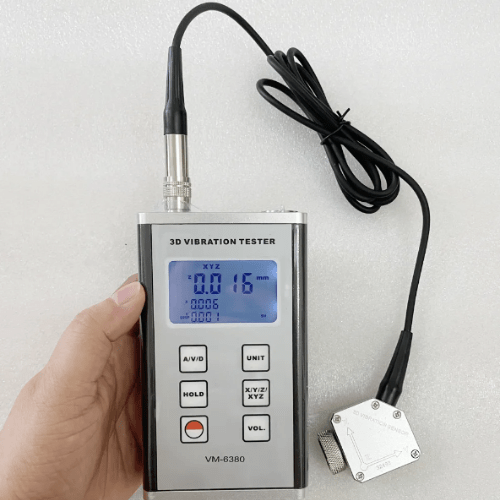

Features
- 3 same parameters in one display for 3-dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
- In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
- Specially designed for easy on-site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
- Individual high-quality accelerometer for accurate and repeatable measurements.
- Wide frequency range (10 Hz to 10 kHz) in acceleration mode.
- Optional headphones for use as electronic stethoscope.
- Bearing condition monitoring function.
- Use USB/RS-232 data output to connect with PC. (optional)
- Provide Bluetooth data output choice. (optional)
Technical Specifications
| Sensor | Piezoelectric Sensor |
| Measuring Range | Acceleration: 0.00039 in/s2 to 7.87 in/s2 (0.01 m/s2 to 200 m/s2) Equivalent Peak Velocity: 0.00039 in/s to 7.87 in/s (0.01 m/s to 200 m/s) True RMS Displacement: 0.000039 in to 0.079in (0.001 mm to 2.0 mm) Equivalent Peak-Peak |
| Frequency Range | Acceleration: 10 Hz to 1 kHz, 10 Hz to 10 kHz Velocity: 10 Hz to 1 kHz Displacement: 10 Hz to 1 kHz |
| Accuracy | < 5% |
| Operation Conditions | Temperature: 14 °F to 122 °F (0 °C to 50 °C) Humidity: <90% RH |

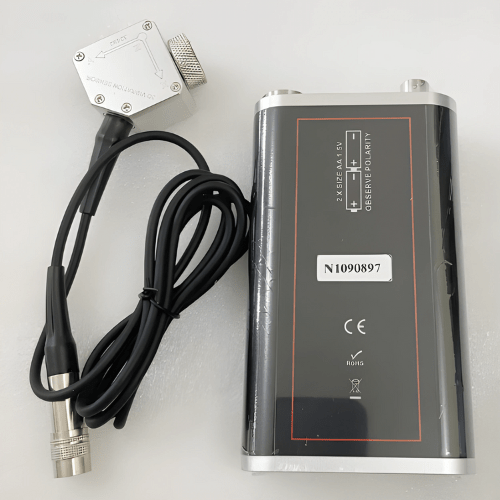

| Power Supply | 2 AA 1.5 V (UM-3) battery |
| Dimensions | 5.39 in x 2.99 in x 1.26 in (137mm x 76mm x 32 mm) |
| Weight | 0.94 lbs (0.425 kg) |
