Overview

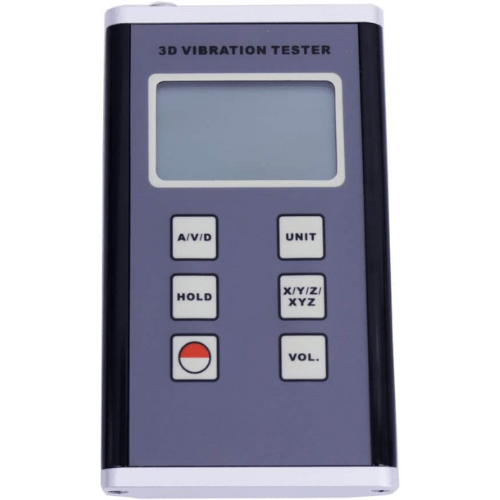

Hospitality Enviro Tech Digital Velocity Vibration Meter used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. Can shown 3 same parameters in one display for 3-dimensional measurement. Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
Features
- It is the most scientific, comprehensive Vibration Meter in vibration detection field
- In accordance with ISO 2954, used for periodic measurements
- Specially designed for easy on-site vibration measurement of all rotating machinery
- Individual high-quality accelerometer for accurate and repeatable measurements
- Wide frequency range (10Hz~10kHz) in acceleration mode
- Optional headphones for use as electronic stethoscope
- Use RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Technical Specifications
| Measuring Range | Acceleration | 0.3 ft/s 2 to 1312ft/s² (0.1 mm/s2 to 400m/s²) 0.0~40G Equivalent Peak |
| Velocity | 0.003 in/s to 15.75 in/s (0.01 mm/s to 400mm/s) True RMS | |
| Displacement | 3.937008e-5 in to 0.16 in (0.001 mm to 4.0 mm) 0.0016 in to 6.30 in (0.04 to 160.0 mm) Equivalent Peak-peak | |
| Frequency Range | Acceleration | 10 Hz to 10 kHz |
| Velocity | 10 Hz to 1 kHz | |
| Displacement | 10 Hz to 1 kHz | |
| Accuracy | 5 % of Reading +2 digits | |
| Operating Conditions | Temperature | 32 ˚ F to 122 ˚ F (0˚ C to 50 ℃) |
| Humidity | < 90 %RH | |
| Power Supply | 4 x 1.5 V AAA(UM-4) Battery | |

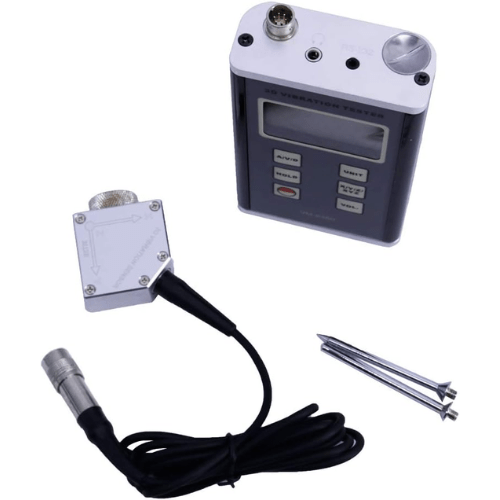

| Standard Accessories | Main Unit | |

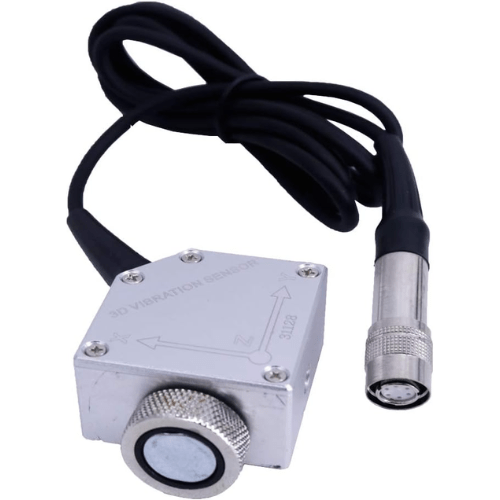

| Piezoelectric Transducers | ||
| Powerful Rare Earth Magnet | ||
| Probe (Cone)&Probe (Spherical) | ||
| Carrying Case(B04) | ||
| Manual Book | ||
| Optional Accessories | Headset | |
| RS-232C Data Cable with Software | ||
| Bluetooth Data Adapter with Software | ||
| Dimensions | 5.511 in x 2.87 in x 1.38 in (140 mm x73 mm x 35 mm) | |
| Weight | 0.91 lbs (415 g) (Not including Batteries) | |
