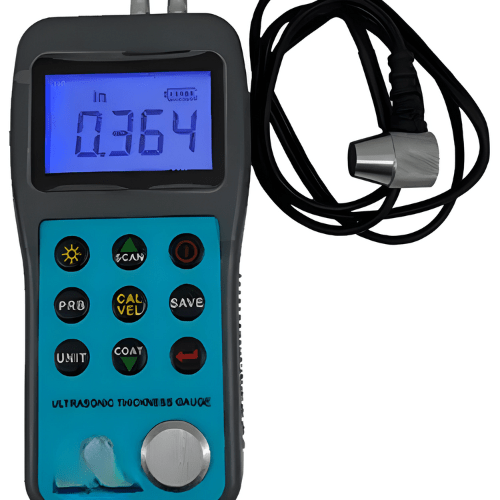

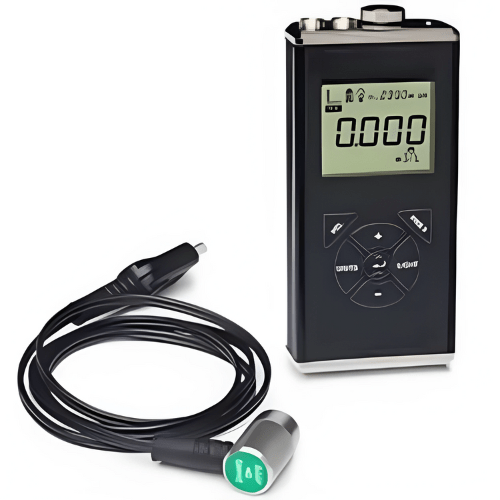

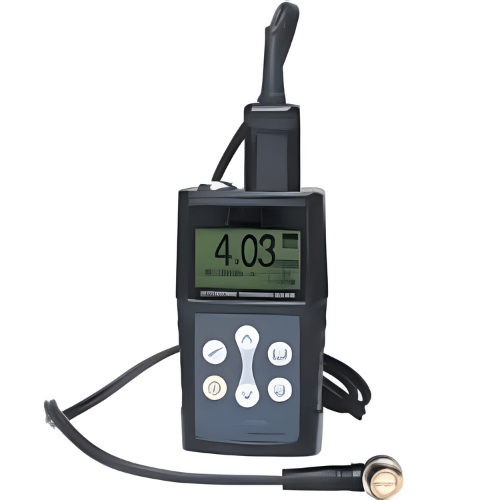

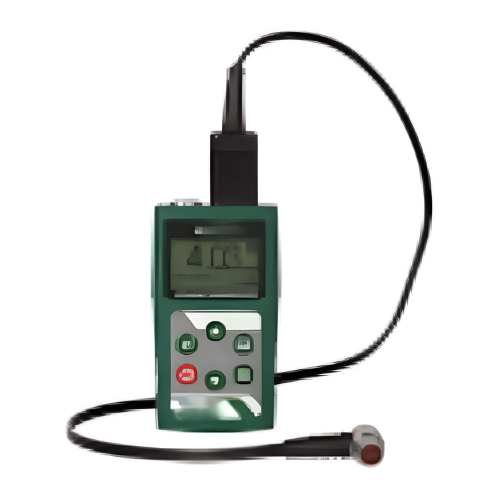

Features
- Two modes: Echo-Echo (E-E) penetrates non-metallic coatings on metal to measure substrate thickness, along with Transmit-Echo (T-E).
- T-E is to measure the thickness of material without coating.
- Low and high limits with judgment
- Average calculation of maximum 9 readings
- Memory of maximum 500 readings
Technical Specifications
| Measuring range | E-E mode: coating thickness 0 in to 0.04 in (0 mm to 1 mm), substrate thickness 0.16 in to 0.98 in (4 mm to 25 mm) T-E mode: substrate thickness 0.06 in to 7.87 in (1.5 mm to 200 mm) |
| Resolution | 0.0004 in (0.01 mm) (range < 3.94 in (100 mm)) 0.0004 in (0.1 mm) (range ≥ 3.94 in (100 mm)) |
| Repeatability | 0.0012 in (0.3 mm) (range < 3.94 in (100 mm)) 0.004 in (0.1 mm) (range ≥ 3.94 in (100 mm)) |
| Accuracy | ± 0.002 in (±0.04 mm) (range < 0.39 in (10 mm)) ±(0.04 + H/1000) mm (range 0.39 in to 3.93 in (10 mm to 100 mm)) ±H/333 mm (range ≥ 3.94 in (100 mm)) H is the thickness to be measured in mm |
| Velocity | 1000 m/s to 9999 m/s |
| Power supply | 2 V × 1.5 V AAA batteries |
| Dimension | 4.57 in x 2.52 in x 1.06 in (116 mm x 64 mm x 27 mm) |
| Weight | 0.49 lb (220 g) |
