Features
- High quality and

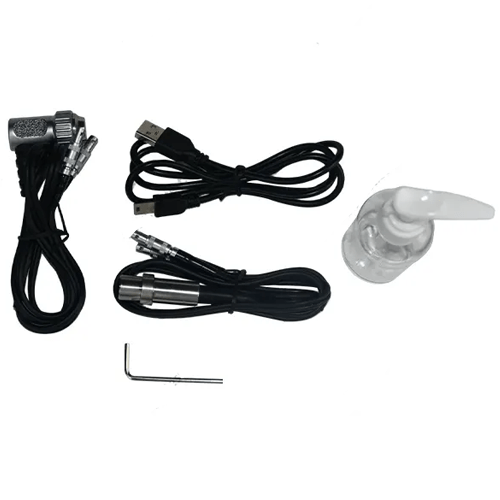

- With 2 probes (Standard probe and Angle probe)
- Integrated with a 0.15 in (4 mm) calibration block
- With coupling state indication.
- Measuring sound velocity
- Software for PC connection and data transmission, analysis
Technical Specifications
| Measuring range | 0.02 in to 13.77 in (0.75 mm to 350 mm) |
| Resolution | 0.0003 in (0.01 mm) |
| Accuracy | ±(0.5% H +0.01) H refers to the thickness of testing piece |
| Velocity range | 1000 m/s to 99999 m/s |
| Storage | 2000 Groups |
| Shell | Plastic |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to 60 ℃) |
| Dampness | 20% to 90% |
| Power supply | 2 x AA |
| Dimensions | 6.4 in x 3.0 in 1.2 in (163 mm x 78 mm x 33 mm) |
| Weight | 0.44 lb (200 g) |
