Features
- Automated calibration of transducer Zero Offset and/or Velocity.
- Automated gain, Peak Hold and Peak Memory.
- Automated display precise flaw location (Depth d, level p, distance s, amplitude sz, dB, ф).
- Automated switch three staff gauge (Depth d, level p, distance s).
- 100 independent setups, any criterion can be input freely, we can work in the scene without test block.
- Big memory of 300 A graph.
- Gate and DAC alarm; Acoustic-Optical alarm.
- RS232/USB port, communication with pc is easy.
- The embedded software can be online updated.
- Li battery, continue working time up to 10 hours.
- Display freeze.
- Automated echo degree.
- Angles and K-value.
- Lock and unlock function of system parameters.
- Dormancy and screen savers.
- Electronic clock calendar.
- Two gates setting and alarm indication.
- High-speed capture and very low noise.
- Automatically calculates the size of the flaw with wide bottom type in AVG function.
- Automatically makes video of test process and play.
- It provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and is easy to read from all angles.
- Powerful pc software and reports can be exported to excel.
Technical Specifications
| Range Of Scanning | 0 in to 590.6 in (0 mm to 15000 mm) |
| Resolution For Scanning | 0.004 in (0.1 mm): 0.1 in to 3.9 in (2.5 mm to 100 mm) 0.04 in (1 mm): 3.9 in to 196.9 in (100 mm to 5000 mm) |
| D-Delay | -20 μs to 3400 μs |
| P-Delay | 0 μs to 99.99 μs |
| Vertical Linear Error | ≤ 3% |
| Horizontal Linear Error | ≤ 0.2% |
| Working Mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| Frequency Range | 0.5 MHz to 20 MHz |
| Range Of Gain | 0 dB to 110 dB |
| Sensitivity Leavings | ≥ 62 dB |
| Dynamic Range | ≥ 34 dB |
| Alarm | Three modes, i.e. forbidden wave, loss wave and auto |
| Sound Speed | 1000 m/s to 15000m/s |
| Data Save | 300 A-Scan images (including setting of instrument) |
| Measuring Unit | mm/inch |
| Battery | Lithium battery 7.4 V 4800 mAh |
| Power Adaptor | Input 100 V to 240 V 50 Hz to 60 Hz Output 9 V DC 1.5 A |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Working Humidity | 20% RH to 90% RH |

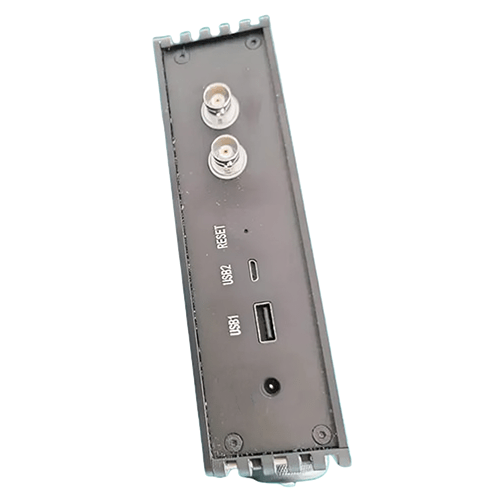

| Port Type | BNC, LEMO |
| Overall Dimension | 9.45 in x 5.91 in x 1.97 in (240 mm x 150 mm x 50 mm) |
| Weight | 3.75 lbs. (1.7 kg) |
