Overview

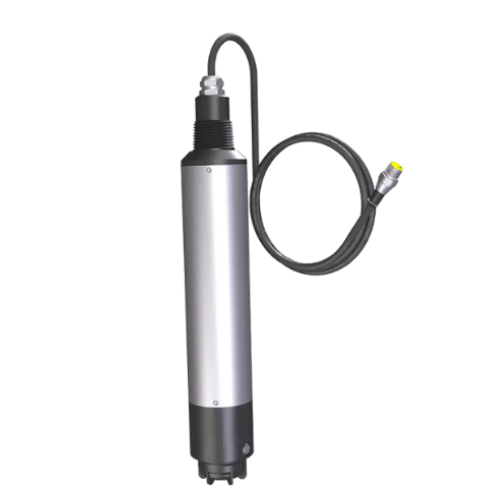

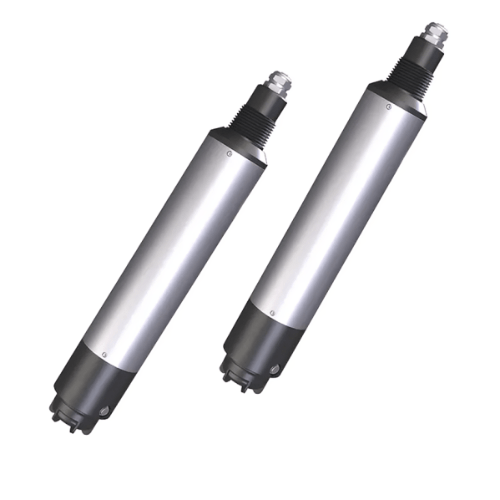

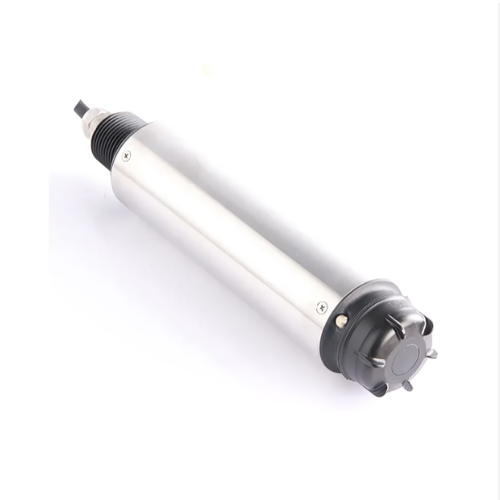

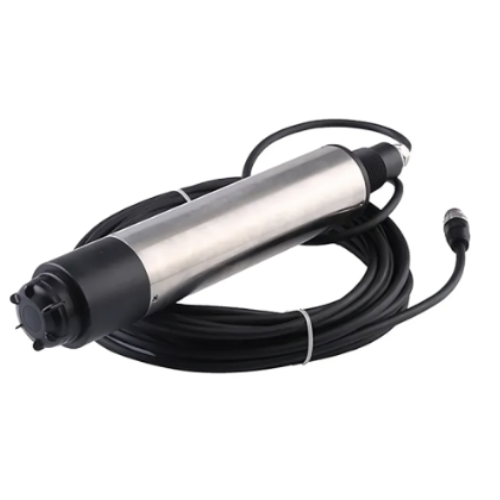

Hospitality Enviro Tech digital turbidity sensor dissolved oxygen sensor uses fluorescence measurement of dissolved oxygen, blue light emitted by the phosphor layer, a fluorescent substance is excited to emit red light, and the fluorescent substance and the concentration of oxygen is inversely proportional to the time back to the ground state.
Features
- Extremely quick and precision optical dissolved oxygen sensor
- It’s suitable for harsh applications and free maintenance, saving cost
- Special light source technology for long working life of dissolved oxygen sensor.
- Provide two ways of 4 to 20 mA output for dissolved oxygen and temperature.
- Digital Optical DO Sensor provides precision and online measurement
- With the data recording function, users easily check history data and history curve
Technical Specifications
| Measuring Range | 0 to 20 mg/L |
| Polarization Time | 32 to 140 °F (0 to 60 °C) |
| Drift | <2% month |
| Zero Oxygen | <0.1 mg/L |
| Temperature Compensation | automatic temp compensation |
| Pressure Range | ≤43.5 Psi (≤0.3 MPa) |
| Storage Temperature | -5 to 49 °F(-15 to 65 °C) |
| Ambient Temperature | 0 to 113 °F(0 to 45 °C) |
| Accuracy | ±1% FS ±32.9 °F(±1% FS ±0.5 °C) |
| Power | 90 to 260 V AC 50/60 Hz |
| Dimension | 5.67 in × 5.67 in × 4.09 in (144 × 144 × 104 mm) |
