Overview

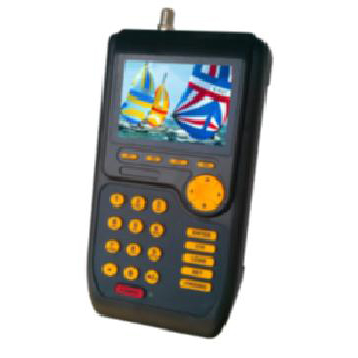

This compact digital satellite finder is specially designed to assist quick setup of satellite dishes and LNBs. With a built-in satellite tuner, it allows users to view specific FTA channels and assess their quality. It also enables user to select and verify equipment. This satellite finder incorporates spectrum analysis software making it convenient for trouble shooting. Measurement data can be stored in the internal memory for later quality comparison. Its high capacity Ni-MH battery allows for 4 hours continuous operation.
Key Features
- 3.5 inch TFT LCD screen with big fonts
- DVB-S compliant satellite finder
- Spectrum analysis function
- PlaysFTA channels
- BER, C/N, signal strength and signal quality indication
- Numerical reading and bar reading for signal strength and quality
- 13V/18V for polarization selection, maximum 400mA current capability
- AV in and AV out function
- Sound and light alarm for lock signal
- Blind scan function
- DiSEqC v1.0
- 22K switch
- High capability Ni-MH battery, 4 hours continuous operation
Technical Specifications
| Frequency Range | 950 MHz to 2150 MHz |
| Signal Level | -65 dBm to -25 dBm |
| RF input connector | F type, female |
| Input resistance | 75 ohm |
| Switch Control | 22 KHz |
| DiSEqC | Ver 1.0 |
| Measurement item | QPSK signal level, BER |
| Memory | 80 measurement data, 80 configuration data |
| LNB power | 13/18V, 400mA |
| Communication port | USB |
| Battery | Ni-MH battery, 4 hours continuous operation |
| Size | 235×105×50mm |
| Power Adaptor | 110V/220V AC |
| Weight | 1.0 Kg |
| Operation temperature | 0 to 40 degree |
Product Brochure
Download the brochure for this product.
