Overview

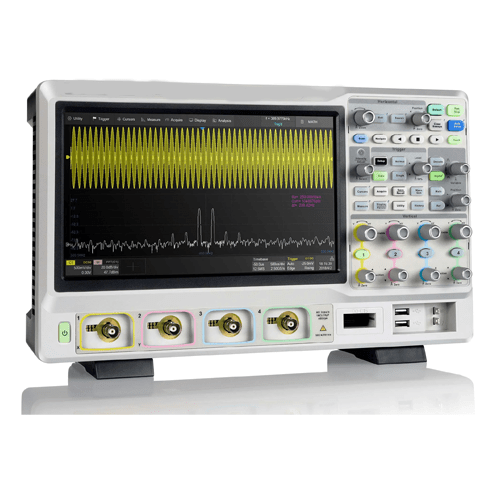

Hospitality Enviro Tech digital phosphor oscilloscopes are equipped with 10.1-inch (25.64 cm) touch screens, which allow you to quickly adjust waveform positions, set up area triggering, and perform parameter selections and setups. They support dozens of parameter measurements, which would undoubtedly take a lot of time if you selected them with traditional knobs. The touch screen selections save you time and effort. In addition, they also support external mice and keyboards.
Features
- 1 GHz, 500 MHz, 350 MHz models
- Real-time sampling rate up to 5 GSa/s
- Record length up to 250 Mpts
- Capacitive touch screen supports multi-touch gestures
- Record length up to 250 Mpts
- Supports external mouse and keyboard
- 10 types of one-button shortcuts
Technical Specifications
| Bandwidth | 350 MHz |
| Channels | 4 + EXT |
| Sample Rate | 5 GSa/s (single-channel), 2.5 GSa/s (dual-channel) |
| Maximum Memory Depth | 250 Mpts (single), 125 Mpts (double) |
| Capture Rate | 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) |
| Display | 10.1 in (25.64 cm) |
| Resolution | 1024 pixels x 600 pixels |
| Low Background Noise | 0.5 mV/div to 10 V/div |
| Protocols | I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, Flex Ray, I2S, MIL-STD-1553B, SENT |
