Features

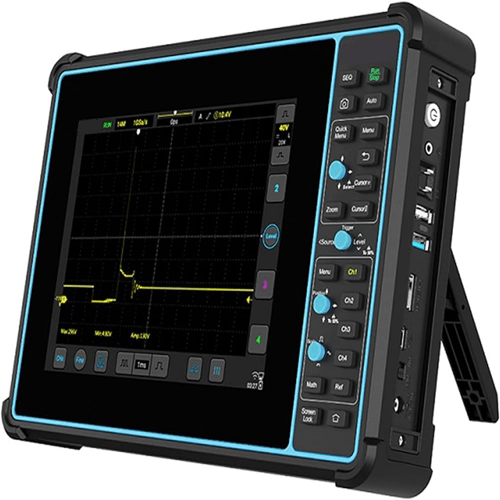

- Portable tablet design with all-in-one functions
- Comprehensive auto diagnostic presets package
- Powerful signal capture and analysis capabilities
- Support PC and Smartphone App remote control
- HDMI function for training & demonstration
- Life-long free firmware online upgrade
- Up to 80,000 wfm or s capture rate
- Up to 28Mpts memory depth
- 31 types of auto measurements
- Various trigger functions
- Gradient waveform displays with 256 intensity levels.
- Mouse operation
Technical Specification
| Bandwidth | 100 MHz |
| Number of Analog Channels | 4 |
| Sampling Rate (Max.) | 1 GSa/s |
| Memory Depth | 70 Mpts |
| Waveform Capture Rate (Max.) | 130,000 wfm or s |

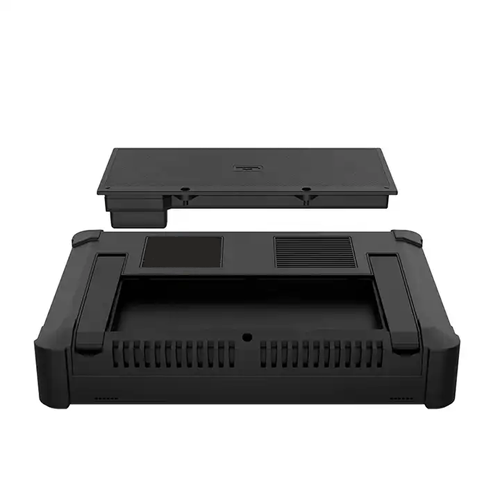

| Battery | 7.4 V, 7500 mAh, Li-ion battery |
|
Support Tests
|
Charging or Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L or H, CAN FD, LIN, Flexray, K line), Combination Tests |

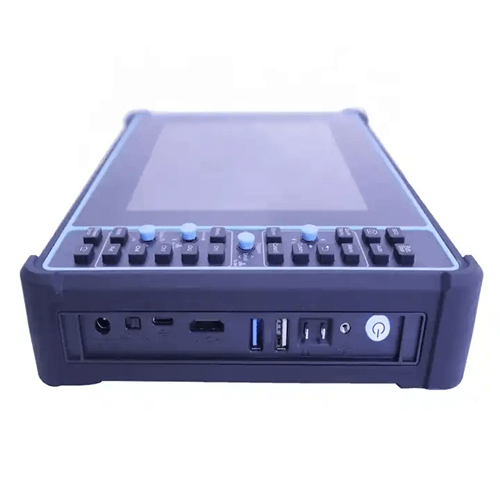

| Interfaces | Wi-Fi, USB 3.0 or 2.0 Host, USB Type-C, Grounding, HDMI, Trigger out |
| Bandwidth Filter | Full bandwidth, Low pass |
| Display Resolution | 800 pixels x 600 pixels |
| Display | 8 in (20.3 cm) |
| Dimension | 10.4 in x 7.6 in x 1.9 in (265 mm x 195 mm x 50 mm) |
| Weight | 4.1 lb (1.9 kg) |
