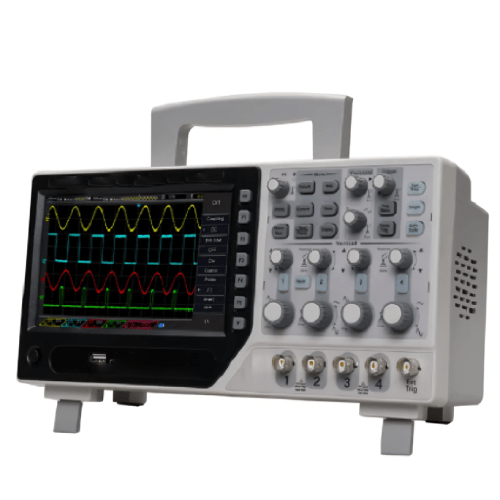

Features
- 4CH oscilloscope + EXT + DVM + auto range function
- 80 MHz to 250 MHz bandwidth
- minimum range 500 μV/div, 1 GS/s sample rate.
- Over 32 types of auto measurement functions.
- Advanced digital trigger system, high trigger sensitivity.
- 14+ types of trigger functions such as edge, overtime, pulse, pattern
- Serial bus triggering and decode for quick protocol display
- Integrated USB Host or Device
- supports U-stick storage or system update
- Supports various SCPI remote control commands
- Optional RS 232 port, LAN port for expanded functionality
- Stable, reliable, sturdy, and durable design
Technical Specifications
| Bandwidth | 250 MHz, 200 MHz, 100 MHz, 80 MHz |
| Sample Rate Range | 1 GS/s |
| Waveform Interpolation | (sin x)/x |
| Record Length | Maximum 64 K samples per single-channel Maximum 32 K samples per dual channel (4 K, 32 K optional) |
| SEC/DIV Range | 2 ns/div to 100 s/div 1, 2, 5 sequence |
| Sample Rate and Delay Time Accuracy |
±50 ppm |
| Delta Time Measurement Accuracy (Full Bandwidth) |
Single-shot, Normal mode ± (1 sample interval +100 ppm × reading + 0.6 ns) >16 averages ± (1 sample interval + 100 ppm × reading + 0.4 ns) Sample interval = s/div ÷ 200 |
| AD Converter | 8-bit resolution Each channel sampled simultaneously |
| VOLTS/DIV Range | 500 μV/div to 10V/div at input BNC |
| Position Range | 500 μV/div to 20 mV/div, ± 400 mV 50 mV/div to 200 mV/div, ±2 V 500 mV/div to 2 V/div, ±40 V 5 V/div to 10 V/div, ±50 V |
| Selectable Analog Bandwidth Limit, Typical | 20 MHz |
| Low Frequency Response (-3db) | ≤10 Hz at BNC |
| Rise Time At BNC, Typical | <1.4 ns, ≤1.8 ns, <3.5 ns, ≤4.4n s |
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 10 V/div to 10 mV/div ±4% for Normal or Average acquisition mode, 5 mV/div to 500 μV/div |
| Acquisition Rate, Typical | Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement) |
| Trigger Mode | Auto, Normal |
| Trigger Level | CH1 to CH4 ±4 divisions from center of screen EXT: 0 V to 3.3 V |
| Holdoff Range | 20 ns to 10 s |
| Trigger Level Accuracy | CH1 to CH4 0.2div × volts/div within ±4 divisions from center of screen EXT: ±6% of setting ± 40 mV |
| Slope | Rising, Falling, Rising and Falling |
| Source | CH1 to CH4 or EXT |
| Dimensions | 11.8 in x 7.9 in x 3.9 in (300 mm x 200 mm x 100 mm) |
| Package Weight | 13.23 Ib (6 Kg) |
