Overview

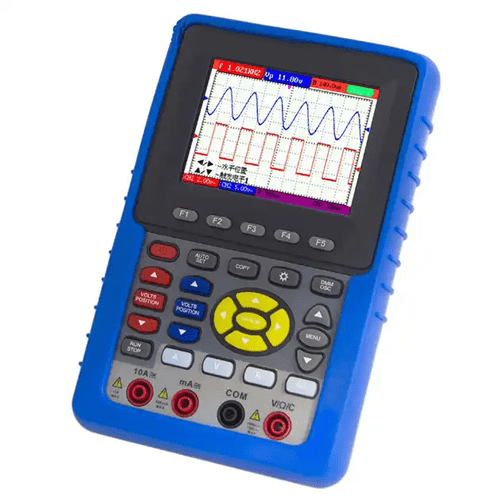

Hospitality Enviro Tech digital multimeter oscilloscope with multifunctional electric meter and oscilloscope functions. With a multi-language interface, 60 MHz measurement bandwidth can be used for electronic circuit inspection, suitable for school teaching and personal studio use.
Features
- Wave storage 10 set
- Edge, video, alternate
- Built-in FFT function
- RS232 or USB signal output
- Power display
Technical Specification
| Bandwidth | 60 MHz |
| Sampling Rate | 250 MS/s |
| Rise Time | <5.8 ns |
| Input Resistance | 1 MΩ ±2%, Parallel with 20 pF ±3 pF |
| Screen Resolution | 640 pixels x 5480 pixels |
| DC Gain Accuracy | ±5% |
| Sampling | ±100 ppm |
| Trigger Accuracy | ±0.3 div |
| Horizontal Resolution | 5 ns/div to 100 s/div |
| Vertical Resolution | 5 mV/div to 5 V/div |
| Signal Resolution | 8 Bits |
| AC Voltage | 750 V |
| DC Voltage | 1,000 V |
| Power Consumption | 7 W |
| Elevation Limitation | <0.62 mi (<1000 m) |
| Working Humidity | 80% RH |
| Storage humidity | 70% RH |
| Working Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Temperature | 32° F to 122° F (0° C to 50° C) |
| Size | 7.08 in x 4.52 in x 1.57 in (180 mm x 115 mm x 40 mm) |
| Weight | 1.51 lb (685 g) |
