Features
- 50 M digital storage

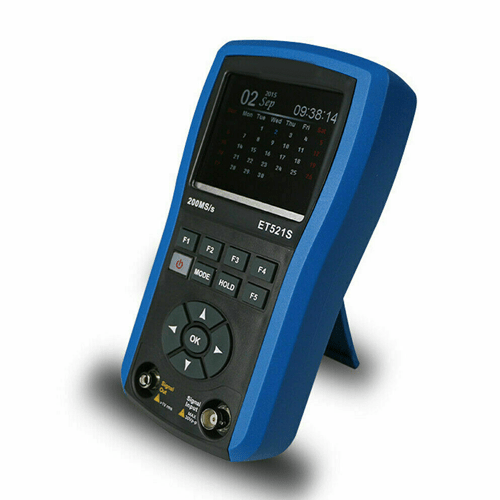

- Calendar display
- Help window to prompt essential function
- Automatic display of measured wavelengths
- One-click auto measurement
- Digital or analog clock
Technical Specification
| Display | 3.5 in (8.89 cm) |
| Display Resolution | 320 pixels x 240 pixels |
| Battery | 2300 mAh lithium battery |
| Signal Generator Frequency | 10 Hz to 158 kHz |
| Storage Capacity | 40 groups |
| Power Supply | 110 V to 250 V |
| Trigger Level | ±3.8 div (0.04 div per step) |
| Trigger Position Adjustment | ±3.8 div (0.04 div per step) |
| Graduation | Vertical ±4 div; horizontal 12 div |
| Application Temperature | 32° F to 104° F (0° C to 40° C) |
| Application Humidity | <75% RH |
| Storage Temperature | 14℉ to 140° F (-10℃ to 60° C) |
| Storage Humidity | <90% RH |
| Dimensions | 7.87 in x 5.31 in x 2.04 in (200 mm x 135 mm x 52 mm) |
| Weight | 1.08 lb (490 g) |
