Overview

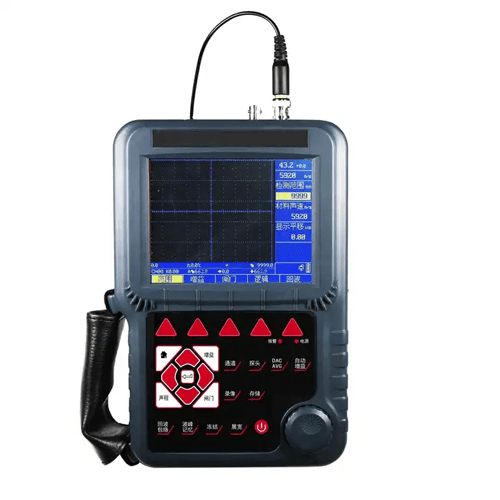

Hospitality Enviro Tech digital flaw detector oscilloscope can test, orient, evaluate and diagnose various flaws such as cracks, lard, air hole in work piece’s interior swiftly and accurately without any destruction. It can be used in Laboratory as well as in engineering filed. With a range of 0-9999mm, it can meet the requirement for general defect inspection in manufacturing industry, metallurgical industry, metal processing industry, chemical industry and so on. Low power design with large capacity and high-performance lithium battery module, it can be long standby for months. High quality with low price, it is the first choice for the practical economic model for ultrasonic testing equipment.
Features
- Gate Alarm Feature
- Data Storage
- Video Function
- Real-Time Clock
- Communication
- Battery Module
- Flaw Detecting Function
Technical Specification
| Bandwidth | 0.5 MHz to 15 MHz automatic matching according to the probe frequency |
| Measuring Range | 0 in x 393.6 in (0 mm to 9999 mm) in steel |
| Material Velocity | 1000 m or s to 9999 m or s |
| Dynamic Range | 36 dB |
| Vertical Linear Error | 3.0% |
| Horizontal Linear Error | 0.2% |
| Resolution | 40 dB (5P14) |
| Rejection | (0% to 80% Linear without affecting the linearity and gain |
| Noise Level | 10% |
| Probe Type | Straight beam probe, angle beam probe, dual element probe, through-transmit probe |
| Gates | Wave-getting Gate, Wave-losing Gate, Single Gate Reading, Dual Gate Reading |
| Alarm | Beep Alarm and LED light Alarm |
| Power Supply | DC 9V |
| Working Time | 8 hrs |
| Operating Temperature | 14° F to 122° F (-10° C to 50° C) |
| Relative Humidity | (20% RH to 95% RH |
|
Pulse Energy
|
Low (300 V), Medium (500 V) and High (700 V) selectable, suitable for various probe |
|
Pulse Width
|
0.1 μs to 0.51 μs range with continuous adjustment to match the different frequency probes |
| Probe Damping | 100 Ω, 200 Ω, 400 Ω selectable to meet different requirements for resolution and sensitivity |
| Gain | 0 dB to 110 dB adjustable in selectable steps 0.1 dB, 1 dB, 2 dB and 6 dB |
| Display | 320 pixels x 240 pixels TFT LCD |
| Overall Dimensions | 10.3 in x 6.6 in x 2.4 in (263 mm × 170 mm × 61 mm) |
| Weight | 13.2 lb (6 kg) |
