Overview

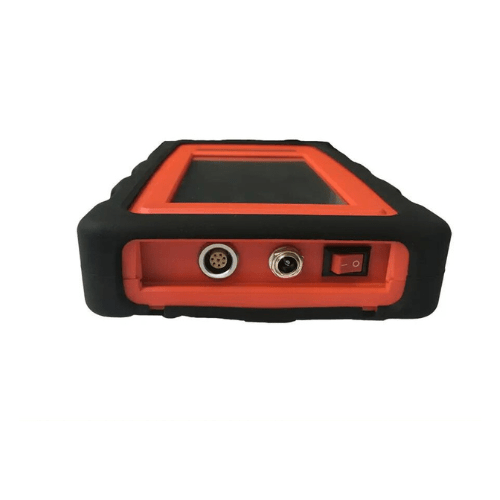

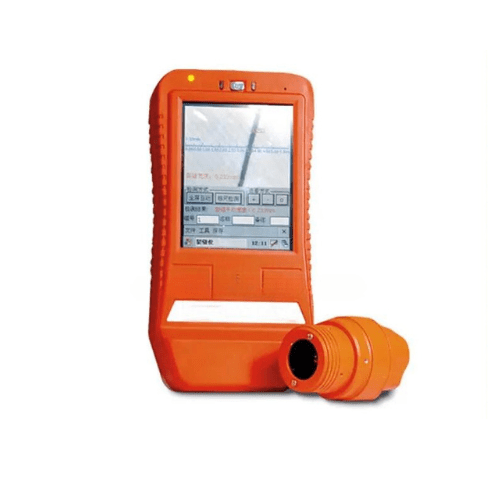

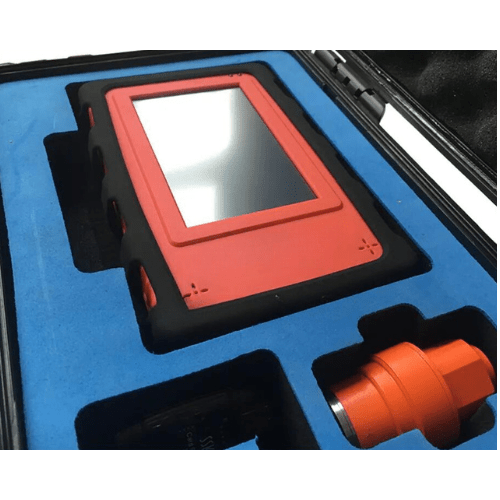

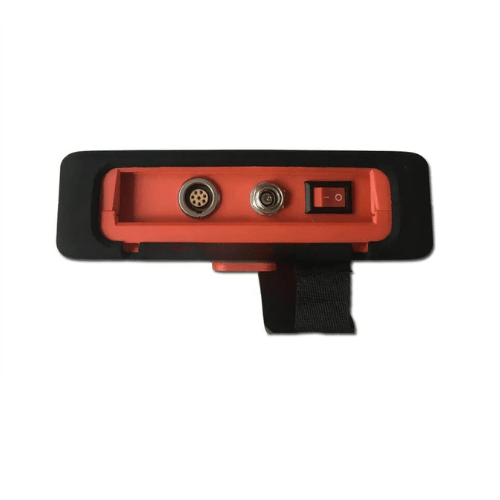

Hospitality Enviro Tech digital crack monitoring detector is mainly used for the accurate detection of bridges, tunnels, buildings, concrete pavement, metal surface and so on. The system can automatically capture the image of cracks and real-time display crack images and their width data. The image data can be saved automatically.
Features
- Smart detection mode
- Crack position without adjustment
- Scale testing method
- It is convenient to detect the same crack several times and compare the testing data
- Standard probe and high-grade probe
- Save crack images quickly with the snapshot button
- 4GB large-capacity SD card can store more than 100,000 data
- Powered by lithium batteries
Technical Specifications
| Hardware Platform | Embedded ARM9 Hardware Platform |
| Operating System | Win Ce 5.0 |
| Screen | True Color TFT Touch Screen |
| Range | Standard Probe 3.9e-4 in to 0.256 in (0.01 mm to 6.5 mm) |
| Accuracy Standard Probe | ≤±7.9e-4 in (±0.02 mm) |
| Image Storage Format | BMP or JPEG |
| Power Supply | Rechargeable Lithium Battery |
| Working Time | ≥28 hrs |
| Operating temperature | 14°F to 122°F (-10°C to 50°C) |
| Humidity | ≤90% RH |
| Dimensions | 7.1 in x 3.94 in x 1.97 in (180 mm x 100 mm x 50 mm) |
| Net weight | 2.21 lb (1 kg) |
