Overview

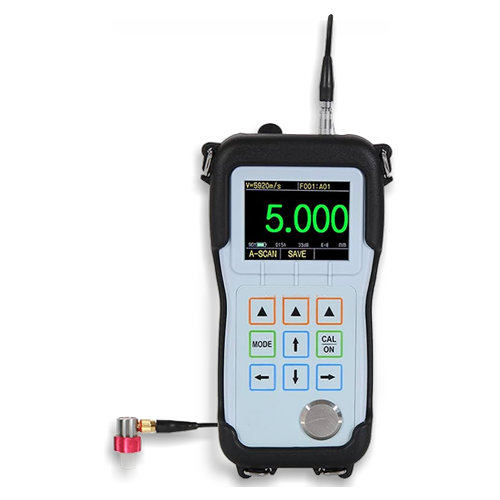

This Digital Coating Thickness Gauge Tester work on thin workpieces with real-time A-scan and a temperature range of 14 °F to 122 °F.
Features
- High Precision
- Designed for thin workpiece
- Real time A-scan with adjustable gain
- Though coating measurement
- The net thickness of the substrate can be measured without removing paintings
- Unique multiple-wave verify mode
Technical Specifications
| Display | 2.4 in QVGA (320 × 240) true color OLED screen, contrast 10000:1 |
| Measuring Modes | Interface-Echo Mode (I-E): for thick material
Echo-Echo Mode (E-E): for the thin material and measure through the coating Multiple Echo Verify Mode (ME-E): All the thickness values have been checked through 3 to 9 times of echoes, which makes the result more reliable and accurate. Auto Mode: The instrument selects the measuring mode automatically according to the different materials being tested |
| Measuring Range (Steel) | Interface-Echo Mode: 0.06 in to 1.06 in (1.5 mm to 27 mm)
Echo-Echo Mode: 0.01 in to 0.53 in (0.25 mm to 13.5 mm) Multiple Echo Verify Mode: 0.01 in to 0.35 in (0.25 mm to 9 mm) Auto Mode: 0.01 in to 1.06 in (0.25 mm to 27 mm) |

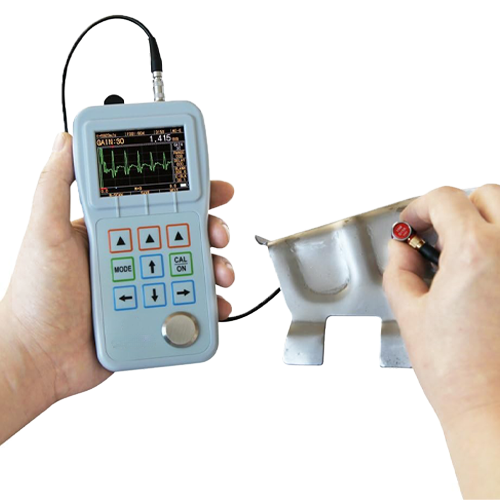

| Display Mode | A-SCAN: Displays the whole RF echo or half-waveform after rectification.

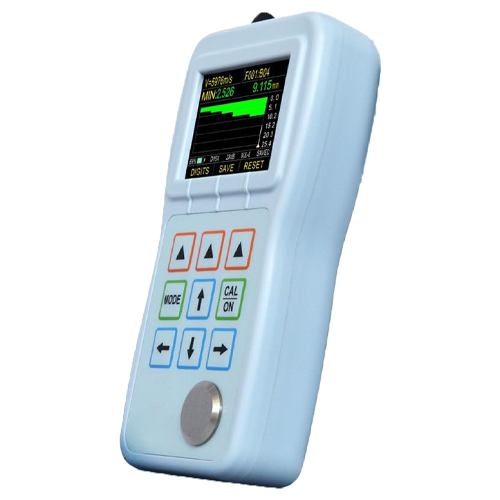

B-SCAN: Real-time B-Scan, displays the profile of the workpiece. Big Thickness Value: The conventional display of the thickness value Difference or thickness thinning rate: Display the difference between the real thickness value and the preset thickness value, and the percentage of the thinning value. Min./Max. Capture: Display the current thickness value, Min. value, and Max. value at the same time |
| Gain | Real-time continuously adjustable, adjustable range 41 dB |
| Measuring Resolution | 0.0001 in or 0.001 in (0.001 mm or 0.01mm) |
| Material Velocity Range | 500 m/s to 9999 m/s, 0.0197 in/us to 0.3937 in/us |
| Alarm Setting | Dynamically change the color of thickness value when the measuring value exceeds the upper limit or lower limit of preset |
| Units | Inch or Millimeter |
| Power | 2 AA size batteries, Operating time is more than 35 hrs. |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, or 20 minutes of inactivity |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size (H x W x D) | 6.02 in x 2.99 in x 1.46 in (153 mm x 76 mm x 37 mm) |
| Weight | 0.62 lb. (280 g) including batteries |
