Overview

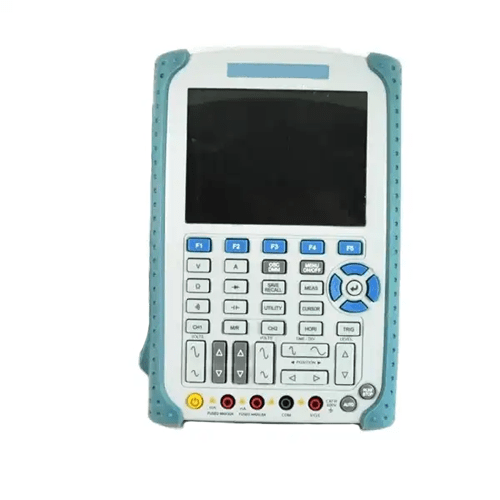

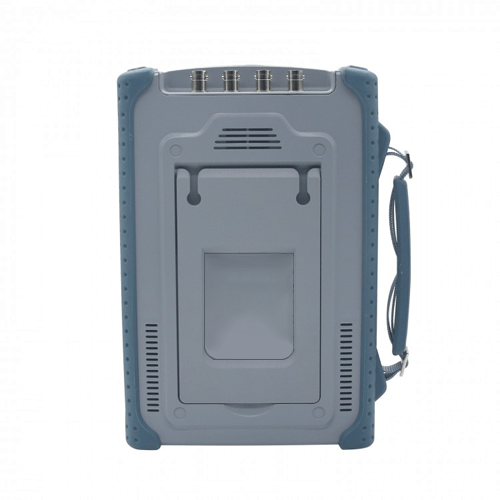

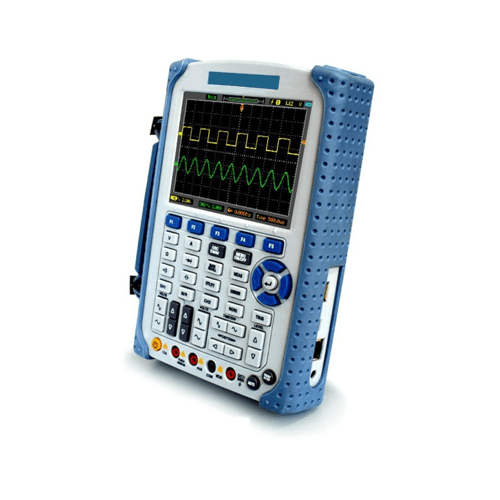

Hospitality Enviro Tech digital channels oscilloscope offer exceptional waveform viewing and measurements in a compact, lightweight package 9.6 in x 6.4 in x 2 in (245 mm × 163 mm × 52 mm). This handheld digital oscilloscope is ideal for production tests, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting. double-channel digital oscilloscope with installed multimeter. Bandwidth is 60 MHz. Real-time sampling rate is 150 MSa or s. Multimeter mode allows user to measure AC or DC current and voltage, resistance, capacitance, continuity and test diodes.
Features
- Large 5.7 in (14.4 cm) TFT color LCD display with backlight.
- USB Host or Device 2.0 full-speed interface with removable disk
- RS-232 optional
- Easy to control with PC or at long-distance
- Bandwidth 60 MHz
- Functions of high precision digital multimeter (6000 counts)
- High refresh rate. High real-time
- sample rate 150 MSa or s, 50 GSa/s equivalent-time sample rate
- Math: FFT, +, -, *, or X-Y. Pass or Fail function
- 22 automatic measurements
- Multiform trigger mode
- 2 separate time bases in ALT trigger mode
- Easy to see 2 signals with different frequencies
- 1000 waveform records
- Installed battery: 6 hrs work time
- Saving waveforms in .jpg or.bmp format, MS excel or word files
- LabVIEW second design instance
- Software compatible: Windows NT, Windows 2000, Windows XP, VISTA
Technical Specification
| Channels | 2 |
| Bandwidth | 60 MHz
200 MHz |
| Sample Rate | 250 MSa or s
500 MSa or s |
| Rise Time | 5.8 ns, 1.7 ns |
| Input Sensitivity | 10 mV or div to 5V or div
2 mV or div to 5V or div |
| Real-time Sampling Rate | 250 MSa or s, 500 MSa or s |
| Equivalent Sampling Rate | 50 GSa/s |
| Time Base Range | 5 ns or div to 1000 s or div, 2 ns or div to 1000 s or div |
