Overview

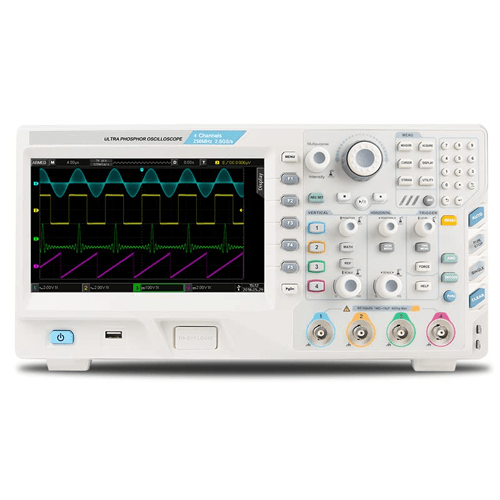

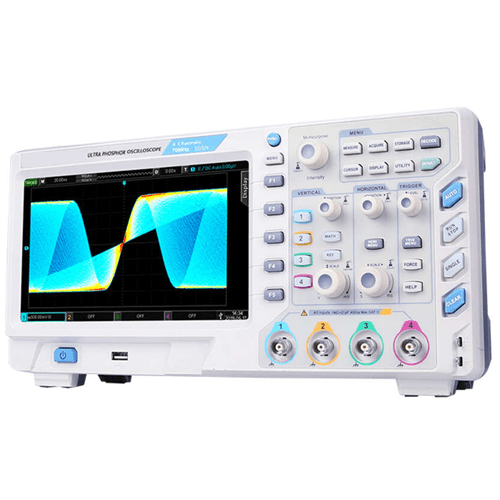

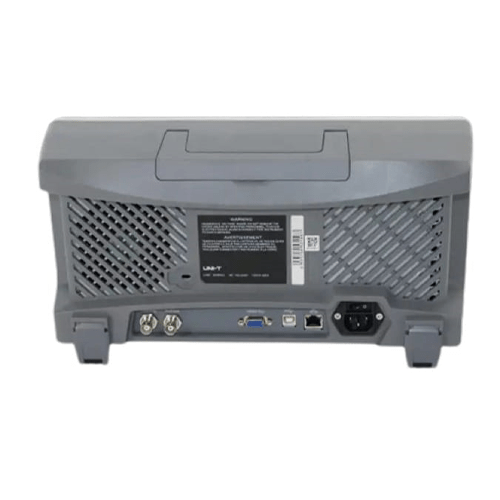

Hospitality Enviro Tech digital channel mixed signal oscilloscope Mixed Signal Oscilloscope is based on UNI-T’s unique Ultra Phosphor technology. A multifunctional, high-performance oscilloscope that is easy to use, with excellent technical specifications, a perfect combination of many functionalities that help users to quickly complete testing.
Features
- 16 Digital Channels Mixed Signal Analysis Capability
- Built-in Dual-Channel 50 MHz Signal Generator
- Independent Time Base and Multiple Trigger Functions
- Longer storage depth 70 Mpts storage depth per channel
Technical Specification
| Analog bandwidth | 150 MHz, 250 MHz |
| Channels | 2 + 16 digital, 4 + 16 digital,2 + 16 digital, 4 + 16 digital |
| Sampling rate (Analog) | 2.5 GS or s (Single channel), 1.25 GS or s (Dual channels) |
| Sampling rate (Digital) | 1.25 GS or s (Eight channels), 625 MS or s (Sixteen channels) |
| Memory depth | 70 Mpts |
| Waveform capture rate | 200,000 wfms or s |
| Time base scale | 2 ns or div to 50 s or div (Real-time sampling rate, memory depth display) |
| Time base scale (digital) | 2 ns or div to 40 S or div [Step by 1 to 2 to 4 stalls] |
| Input impedance | (1 MΩ ±1%) II (20 pF ±3 pF) |
| Input impedance digital | (101 kΩ ±1%) II (9 pF ±1 pF) |
| Vertical scale | 1 mV to div to 20 V to div (1 MΩ) |
| DC gain accuracy | <5 mV: ±3%, ≥5 mV: ±2% |
| Waveform record | 100,000 frames |
| Trigger types | Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup or Hold, Pulse Width, Slop, Video, Code; RS232 or UART, I2C, SPI, USB, CAN, LIN, Flex Ray |
| Power | 100 V to 240 V |
| Display | 8 in (20.3 cm) TFT LCD, WVGA (800 x 480) |
| Color | White and grey |
| Standard carton measurement | 18.5 in x 16.7 in x 11.8 in (470 mm x 425 mm x 300 mm) |
| Product net weight | 7.7 lb (3.5 kg) |
