Overview

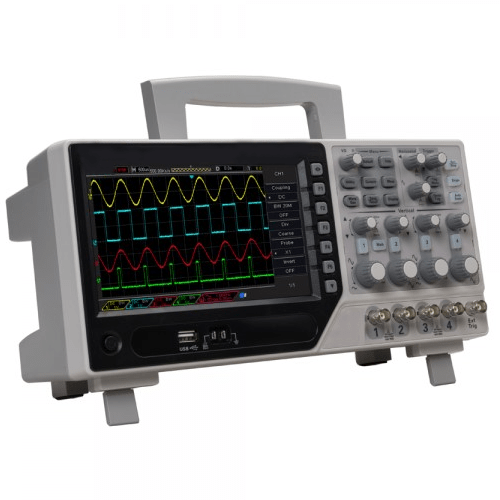

Hospitality Enviro Tech digital bench oscilloscope is a 4CH oscilloscope, with 1CH Arbitrary or function waveform generator, independent keys of oscilloscope and waveform generator which is easy to operate at the same time. 80-250MHz bandwidth, minimum measurement range 500μV /div,1GS/s sample rate, advanced digital trigger system, high trigger sensitivity, low trigger jitter, high resolution 7 in (17.78 cm) 64K color TFT (800 pixels x 480 pixels).
Features
- 4CH oscilloscope + EXT + DVM + auto range function
- 1 GSa/s sample rate
- Over 32 types of auto measurement function
- High trigger sensitivity.
- Advanced digital trigger system
- Support a variety of SCPI remote control command
Technical Specification
| Bandwidth | 250 MHz |
| Display | 7 in (17.78 cm) |
| Sample Rate Range | 1 GS/s |
| Sample Rate andDelay Time Accuracy | ±50 ppm |
| Low Frequency Response | ≤10 Hz at BNC |
| Rise Time at BNC | ≤1.4 ns |
| Holdoff Range | 20 ns to 10 s |
| Time Range | 8 ns to 10 s |
| Resolution | 8 ns |
| Baud Rate | 300 bit/s to 334000 bit/s |
| Baud Rate | 5 kbit/s to 1M bit/s |
| Dimension | 12.51 in x 4.33 in x 5.90 in (318 mm x 110 mm x 150 mm) |
| Weight | 6.39 lb (2.9 kg) |
