Overview

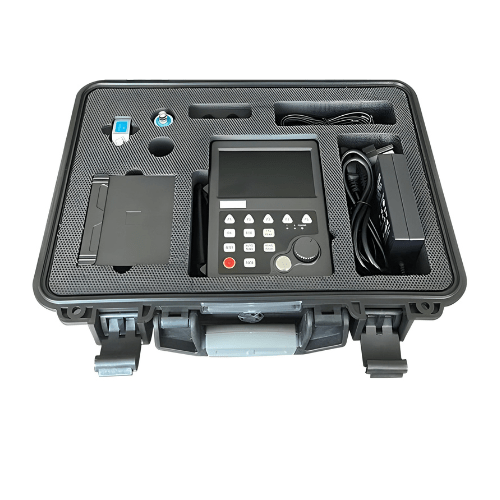

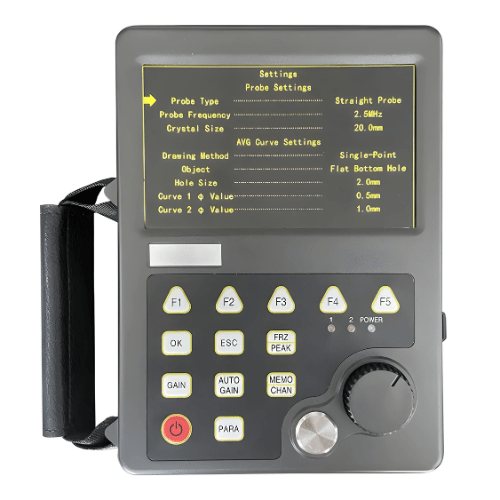

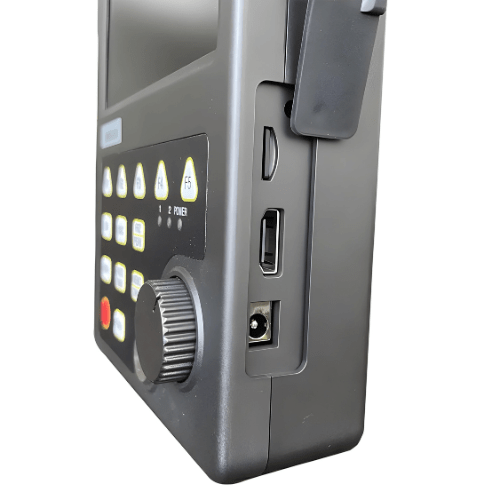

Hospitality Enviro Tech Detection Ultrasonic Flaw can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment.
Technical Specifications
| Examination Range | 0 in to 393.70 in (0 mm to 9999 mm) |
| Working Frequency | (0.2 MHz to 20 MHz) |
| Sound Speed Range | 3280.84 ft/s to 49212.6 ft/s (1000 m/s to 15000 m/s) |
| Dynamic Range | ≥36 dB |
| Vertical Linearity Error | ≤2.5% |
| Horizontal Linearity Error | ≤0.1% |
| Discrimination | >40 dB(5P14) |
| Sensitivity Margin | >65 dB |
| Digital Suppression | (0 to 80) %, does not affect linearity and gain |
