Overview

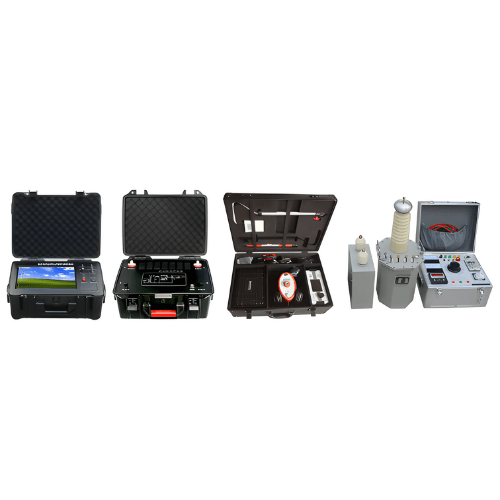

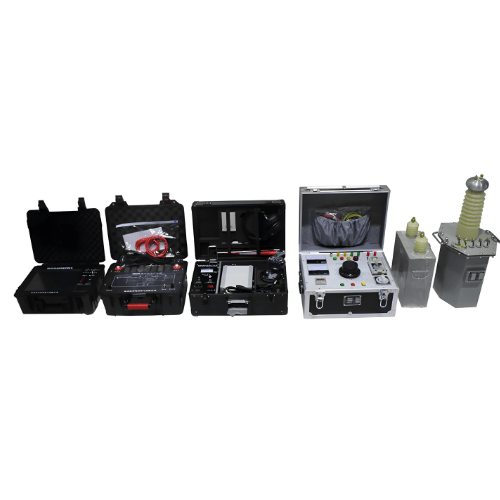

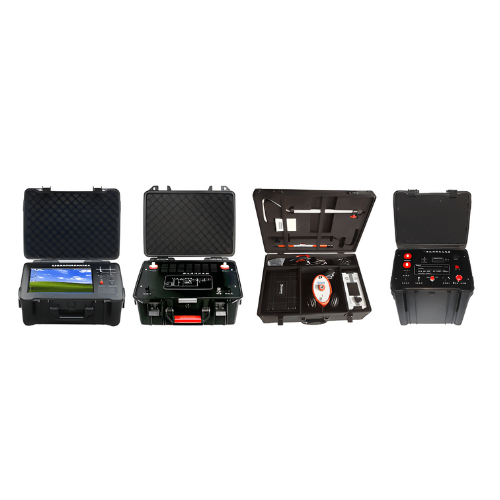

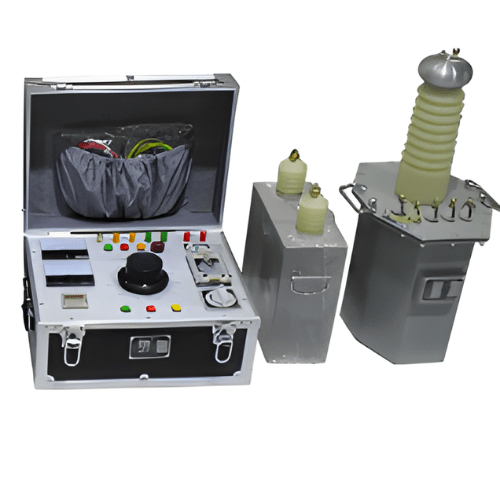

Hospitality Enviro Tech DC system grounding fault locator the core technology of the multiple-pulse method has completely changed the traditional test method, which has fundamentally solved the problem of reading high-resistance fault waveforms that was difficult to solve. The waveform is transformed into a very familiar and easily identifiable low voltage pulse short circuit fault waveform. It completely solves the problem that users cannot identify complex high-resistance fault waveforms for a long time, so that the key rough measurement level can be improved qualitatively.
Technical Specifications
| Test Method | Low voltage pulse method, flash current method, multiple pulse method |
| Operation Mode | Dual operation, touch pen and touch mouse operation |
| Resolution | V or fm; V is the wave transmission speed m or μs; software cursor 0.10 meters. |
| Sampling Frequency | 6.25 MHz、12.5 MHz、25 MHz、50 MHz、100 MHz |
| Power and Power Consumption | AC 220 V ± 10% not more than 15 W DC 12 V (7 AH) not more than 15 W |
| Temperature | Temperature -4 ℉ to 104 ℉ (-20 ℃ to﹢40 ℃), relative humidity 80%. |
| Dimensions | 7.09 in × 11.81 in × 15.75 in (180 mm × 300 mm × 400 mm) |
| Host Weight | 13.66 lb (6.2 kg) |
