Overview

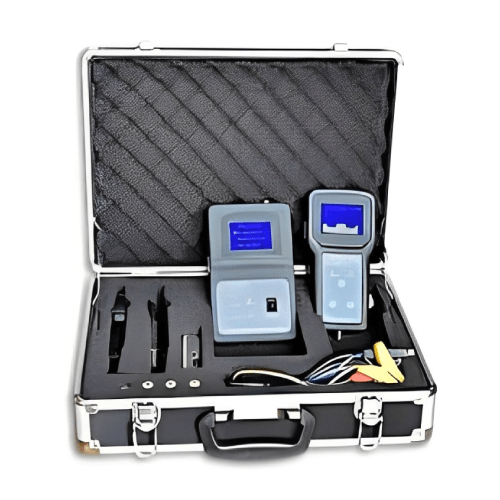

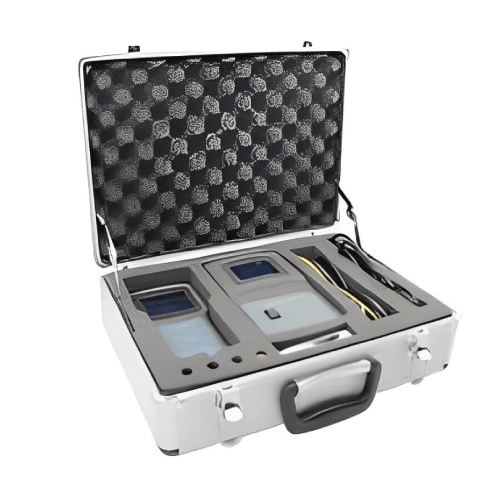

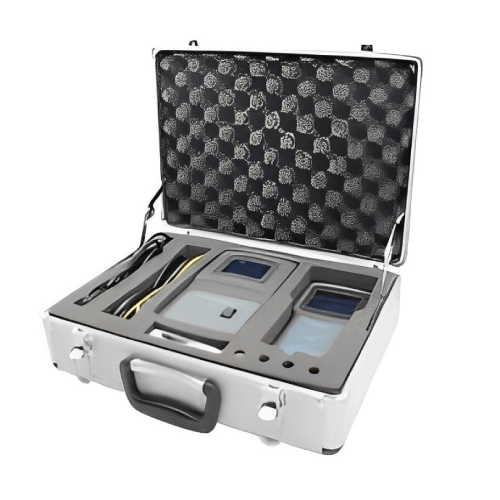

Hospitality Enviro Tech DC system ground fault locator is to find the insulation fault of voltage level 48 V, 110 V, 220 V DC system such as indirect grounding, non-metal grounding, Loop grounding, positive and negative grounding, positive and negative balance grounding, AC into DC fault, multi-point grounding. Portable DC ground locator with High resolution sensor unit performs the acquisition of leakage current for grounding point of DC system. It can immediately measure and locate the grounding insulation impedance within 600 KΩ at 220 V voltage level to solve the insulation fault in DC system.
Features
- Grounding voltage measurement
- System insulation impedance measurement function
- Detection function of AC fleeing into DC
- Brand insulation impedance measurement Function
- Fault Point Location function of brand grounding
- The instrument can be used as high accuracy current meter
- Grounding Detection function without signal
- Direction Display Function
- Insulation Index Analysis Function
- Waveform curve display function
Technical Specifications
| Relative Humidity | Less than or equal to 90% |
| Wireless communication specifications | |
| Power Of Signal | ≤ 10 dbm |
| Signal Band | 433 mhz |
| Sensitivity | -106 dbm |
| Transmission Distance | In the range of visibility, the reliable transmission from the ground 6.5 ft (2 m) distance of 328.08 ft (100 m) |
| The Environment Temperature | 23 ℉ to 122 ℉ (-5 ℃ to 50 ℃) |
| Instrument technical specifications | |
| Applicable DC System Voltage Levels | 48 v, 110 v, 220 v |
| System Voltage Measurement Range | 0 V to 300 V |
| DC To The Ground Voltage Measurement Range | 0 V to 300 V |
| AC To The Ground Voltage Measurement Range | 0 V to 280 V |
| Voltage Measurement Resolution | 0.1 v |
| System Grounding Resistance Measurement Range | 0 to 600 KΩ |
| Grounding Resistance Measurement Resolution | 0.1kω |
| Display Mode | Lcd |
| Detection Signal Current Size | 0 ma to 2 ma |
| Detection Signal Voltage Amplitude | 0 V to 50 V |
| Signal Frequency | 0.167 hz |
| Detector specifications | |
| Branch Insulation Resistance Detection Range Under Signal | System voltage level 220 V: 0 to 600 KΩ System voltage level 110 V: 0 to 300 KΩ System voltage level 48 V: 0 to 60 KΩ Insulation impedance measurement resolution: 0.1 kω |
| Branch Insulation Resistance Detection Range Without Signal | System voltage level 220 V: 0 KΩ to 50 KΩ System voltage level 110 V: 0 KΩ to 25 KΩ System voltage level 48 V: 0 K to 10 K Insulation impedance measurement resolution: 0.1 kω |
| Insulation Resistance Measurement Resolution | 0.1 kω |
| Time Waveform Display | 12s |
| Current Measurement Range | ± 50 ma |
| Current Measurement Resolution | 0.01 ma |
| Display | Lcd |
| Direction Display | Up arrows indicate same direction and down arrow indicate inverse direction |
| Clamp Size | Ф 1.18 in (30 mm) |
