Overview
Hospitality Enviro Tech product is mainly used for underground power cable (especially the single core high voltage cable) metal sheath grounding fault accurately pinpointing, also can be used in the auxiliary pinpointing of core grounding fault (in the case of sheath have been destroyed).
Features
- High sensitivity and wide response range
- Digital signal processing technology, direct display signal waveform, strong anti-interface ability
- Automatic zero adjustment, counteract the effect of ground potential change
- Built in large capacity lithium-ion battery pack
- Solid case, light weight and portable
Technical Specification

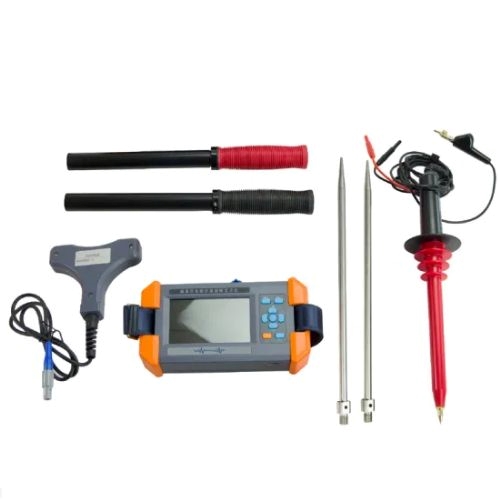

| MODE | ACCESSORY | ACCURACY | MAX. SENSITIVITY | MAX.INPUT RANGE | DISPLAY |
| STEP- VOLTAGE |
Step voltage probe | 1% (±0.1 mV) | 0.1 mV | ±300 V | Signal waveform, fault point direction |
| FAULT CURRENT PINPOINTNG | Current sensor | 1% (±1 mA) | 1 mA | ±1 A | Signal waveform, fault current value |
| HV PROBE ROD PINPOINTING | Step voltage rod | <1% (10 V to 10 kV) | 1 V (10 to 1 kV) 10 V (1 kV to 10 kV) |
±10 kV | DC voltage |
| Other | |||||
| Built-in | 18650 Lithium battery, standard 3.7 V,6.8 Ah. | ||||
| Work status | Temperature: 14 °F to 104 °F (-10 ºC to 40 ºC); Humidity 10-90%RH; Elevation <4500 m (about 2.8 mi) | ||||
| Weight and volume | Volume:8.66 in x 4.92 in x 2.17 in (220 mm ×125 mm ×55 mm); Weight:1.98 Lb (0.9 kg) | ||||
