Overview

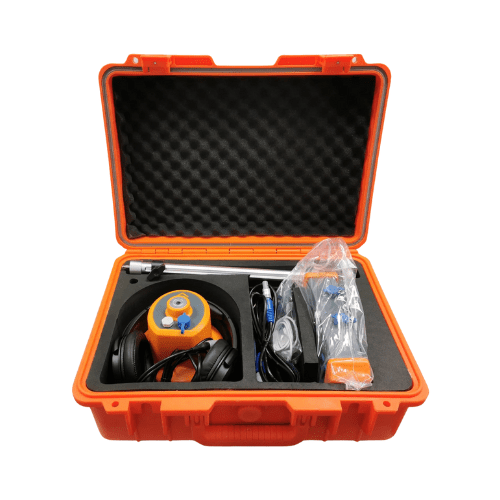

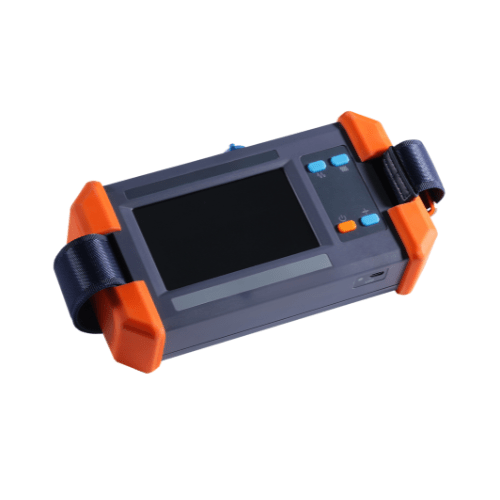

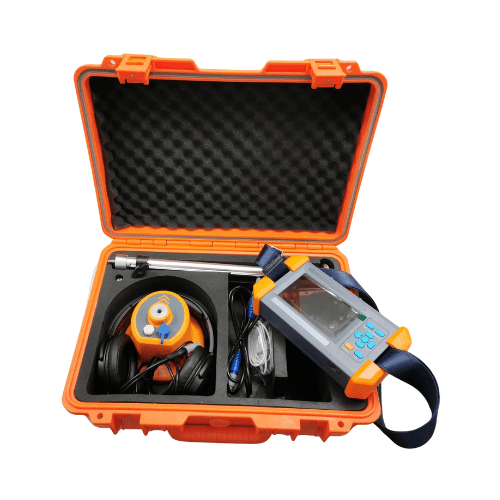

Hospitality Enviro Tech DC acoustic grounding cable fault locator is an effortless operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy. Background noise reduction mode: support noise reduction, no noise reduction, adaptive noise reduction
Technical Specifications
| Display | 800 x 470 dot LCD |
| Bandwidth | all-pass: 80 Hz to 1500 Hz low pass:80 Hz to 400 Hz high pass: 200 Hz to 1500 Hz band-pass: 150 Hz to 600 Hz |
| Signal gain | ≥ 80 dB |
| Accuracy | 0.1 m |
| Power supply | Battery: built in Li ion battery series,3.7 V, 6700 mAH. Continuous work time above 9 hours. Charger: input AC 220 V ± 10 %, 50 Hz output 8.4 V, output 5 V per 2 A |
| Use environment | 14 °F to 104 °F (-10 °C to 40 ° C), 5 % RH to 90 % RH, elevation < 4500 m |
| Size | 9.05 in x 5 in x 2.16 in (230 mm x 127 mm x 55 mm) |
| Weight | Main unit: 2.2 lb (1 kg) Sensor: 3.0 lb (1.4 kg) |
