Overview
Hospitality Enviro Tech data logger high temperature is a low power GPRS temperature and humidity data logger with numerous input and outputs. Its sleep mode provides an average of 2 years non-stop operation with an internal battery.
Features
- Real time GPRS and SMS data upload
- Integrated 16, bits MCU and siemens GPRS module
- Programmable data input type and alert hi or low
- Programmable data upload interval and logging interval
- Easy setup via RS 232 by PC software
- Remote setup by SMS or GPRS
- RS 485 port support data capturing via sensor devices
- Support dynamic domain name or fixed IP, UDP, TCP protocol data transmission
- Internal high-capacity battery
Technical Specifications
| Application | Monitoring |
| Protocol | UDP or TCP |
| Power supply | 6 V DC to 10 V DC |
| Usage | Universal testing machine |
| Material | Waterproof |
| Communication | GPRS, SMS, GSM |
| Color | Silver |
| Warranty | 24months |

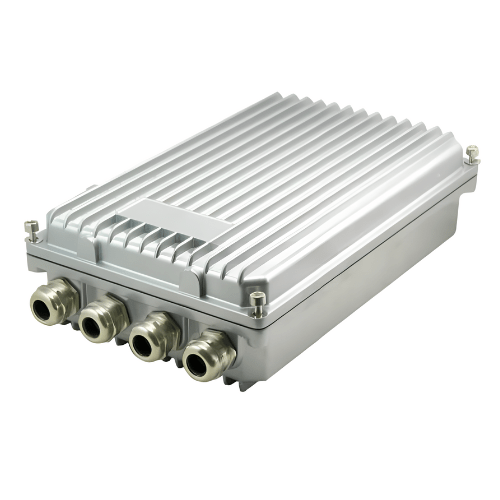

| Enclosure | IP67 aluminum waterproof |
| Power input | 6V DC to 10 V DC |
| Digital input | Dry contact |
| Power consumption | 10ua sleep mode |
| Pulse input | Pulse frequency |
| Single type | 4 mA to 20mA |
| Digital output | Max DC 24 V ,3 A |
| Analog channel | 2 analog channels |
| Modbus | RS 485 data in |
| Digital output | 2 digital outputs |
| Digital input | 4 digital inputs |
| Humidity sensor | 1 humidity sensor |
| Temperature sensor | 2 temperature sensors |
| Humidity accuracy | ±5% RH |
| Temperature accuracy | ±32 °F (± 0.5 ℃) |
