Overview

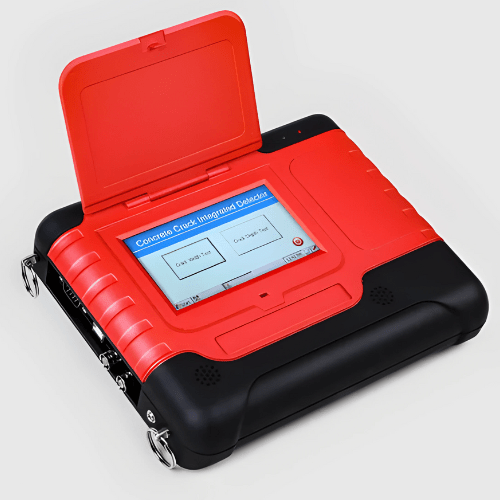

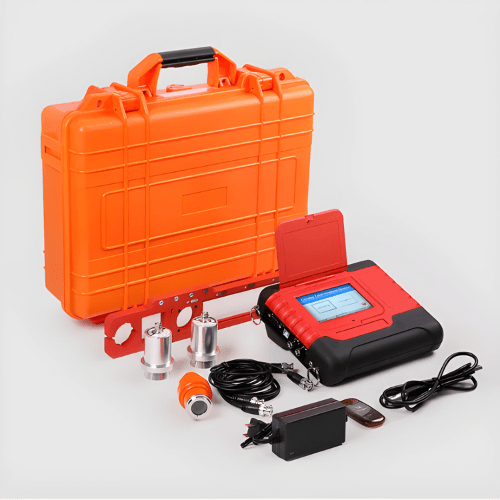

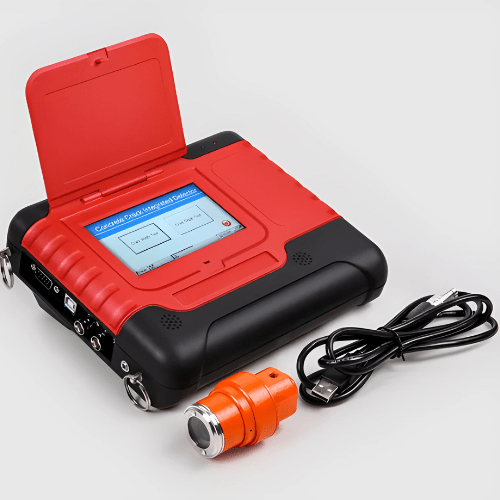

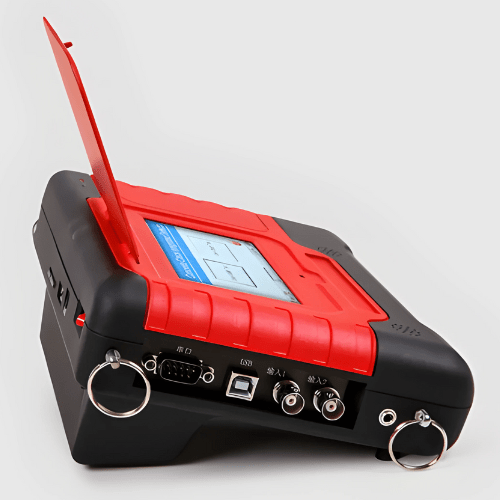

Hospitality Enviro Tech Cracks Width and Depth Detector are mainly used for crack width and crack depth measurement of bridges, tunnels, buildings, roads and so on.
Features
- Standard probe and high grade probe;
- Two detection methods: standard and simple depth measurement.
- Standard ultrasonic transducer bracket, precise and adjustable; free from scene marking-out, which can greatly improve the detection efficiency.
- Image automatic recognition and width intelligent computing technology; crack position without adjustment;
- Crack automatic identification and calculation; real-time display
Technical Specifications
| Hardware Platform | Embedded ARM9 Hardware Platform,WinCe5.0 Operating System, True Color TFT Touch Screen |
| Crack Width Test Range | Standard Probe: 0.01mm to 6.5mm; |
| Crack Width Test Accuracy | Standard Probe:≤±0.02mm |
| Crack Depth Test Range | 10mm to 500mm |
| Crack Depth Accuracy | ≤±5% |
| Image Storage Format | BMP or JPEG |
| Power Supply | Rechargeable Lithium Battery |
| Working Time | ≥28 Hours |
| Working Temperature | -34 °F to +122 °F (-10 ℃ to +50 ℃) |
| Working Humidity | ≤90%RH |
