Overview

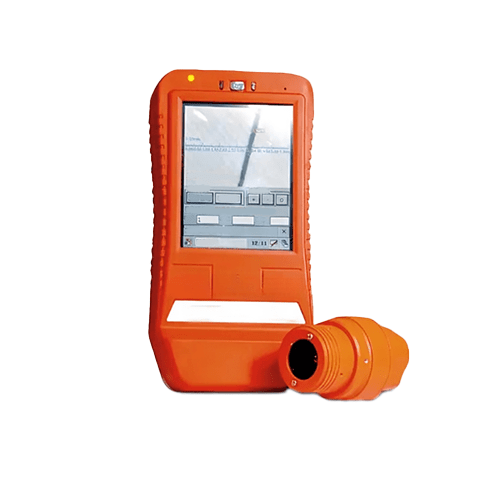

Hospitality Enviro Tech Concrete Crack Meter Detector crack width gauge is mainly used for the accurate detection of bridges, tunnels, buildings, concrete pavements, metal surfaces and so on. The system can automatically capture the image of cracks and real-time display crack images and their width data. The image data can be saved automatically.
Technical Specifications
| Hardware Platform | Embedded ARM9 Hardware Platform |
| Operating System | WinCe 5.0 |
| Screen | True Color TFT Touch Screen |
| Range | Standard Probe: 0.01 to 6.5 |
| Accuracy Standard Probe | ≤ ± 0.02 |
| Image Storage Format | BMP or JPEG |
| Power Supply | Rechargeable Lithium Battery |
| Working Time | ≥ 28 Hours |
| Operating temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Humidity | ≤ 90 % RH |
| Dimensions | 7.08 in x 3.93 in x 1.96 in (180 mm x 100 mm x 50 mm) |
| Net weight | 2.20 lbs. (1 kg) |
