Overview

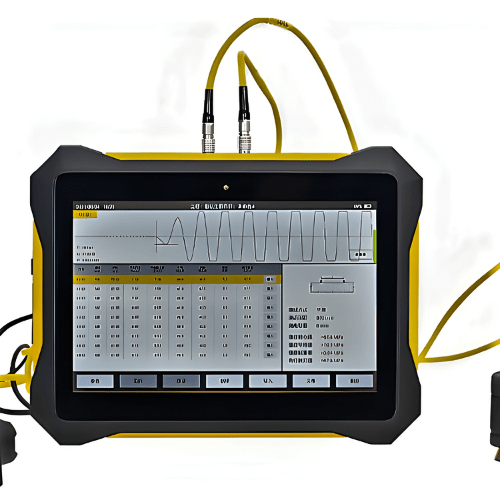

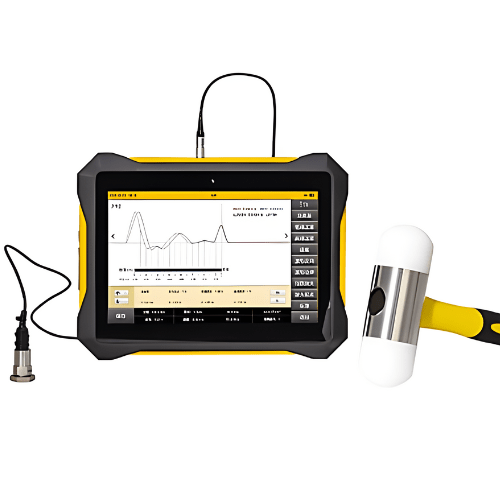

Hospitality Enviro Tech Concrete Crack Detector is used in Construction industry concrete strength detection, internal defects, surface crack depth, width detection; Acoustic parameters and mechanical properties of rock mass and concrete nonmetallic materials.
Features
- The four functions of strength measurement, deficiency measurement, depth measurement and width measurement are integrated by ultrasonic springback comprehensive method.
- Automatic interpretation of first wave time and amplitude, no manual interpretation, direct display of detection results;
- 10 “highlight touch screen, intelligent interface, easy to learn, easy to use and convenient operation;
- 4cm thin body, light weight and easy to carry;
- Can manually adjust the sound timeline, data correction detection results more accurate;
- During the test process, it can replay, cover and delete the waveform of existing measuring points at will.
- Low power consumption design, continuous working time is more than 8 hours;
- USB flash drive to save data, support software upgrade through USB flash drive;
- PC special analysis software powerful, data analysis and processing, printing reports easily completed.
Technical Specifications
| Number Of Channels | Two channels |
| Display Mode | 10.1 “color LCD screen (1280×800) |
| Trigger Mode | Automatically triggered |
| Sampling Interval | 0.025μs to 2000μs |
| Sampling Length | 512 to 2048 points multi-file optional |
| Receiving Sensitivity | ≤ 10μV |
| Measurement Range Of Sound Time | 0 to 4000000μs |
| Amplitude Reading Range | 0 to 170dB |
| Transmission Voltage | 125V, 250V, 500V, 1000V multiple options |
| Pulse Width Of Emission | 0.1μs to 100μs |
| Storage Capacity | 16 GB |
| Transfer Mode | Special U disk |
| Charging Power Supply | AC100 to 240V, 50/60Hz, output 12.6V DC, 3.0A |
