Overview

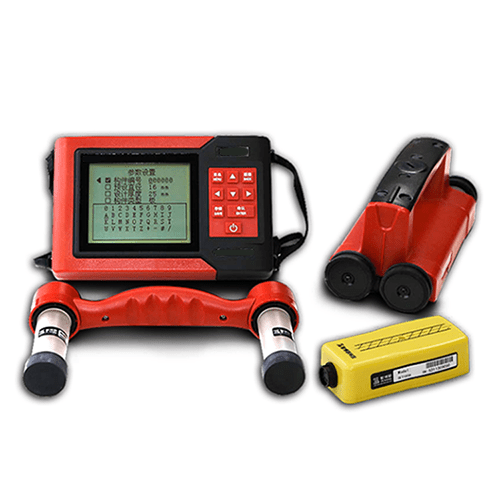

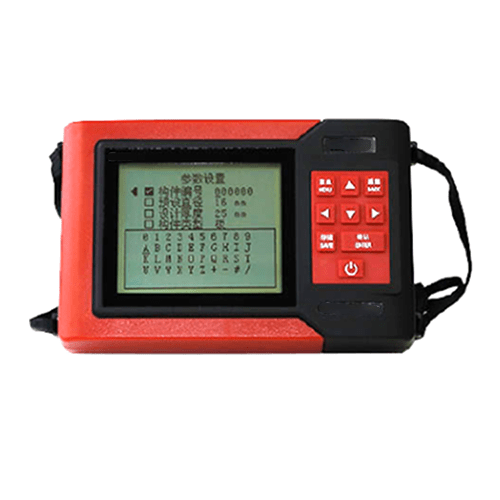

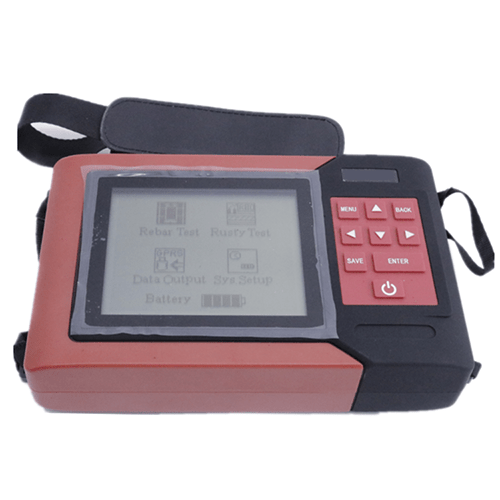

Hospitality Enviro Tech concrete crack detector it can be used to detect the thickness, position, distribution, and diameter of the steel bar protection layer, and it can also be used as an integrated multi functional steel bar testing equipment for the detection of steel bar corrosion.
Technical Specifications
| Rust Detection Method | Unipolar and Bipolar | |
| Measurement Range | ± 1000 mV and 0 mV to 1000 mV | |
| Corrosion Test Accuracy | ± 0.1 mV | |
| Power Supply | Built in rechargeable lithium battery | |
| Diameter Measurement | ± 1 rebar specification | |
| Power Supply Time | More than 38 hrs | |
| Data Transmission | U disk read and write, wireless transmission | |
| USB Interface | Support U disk storage | |
| Technical Index | Diameter specifications: 0.23 in to 1.96 in (6 mm to 50 mm) | |
| Measuring Point X | 0 in to 39.37 in (0 cm to 100 cm) can be set and (20 cm) fixed | |
| Layer Thickness Range | First range: 0.11 in to 3.85 in (3 mm to 98 mm) Second range: 0.11 in to 7.71 in (3 mm to 196 mm) |
|
| Measuring Point Y | 0 in to 39.37 in (0 cm to 100 cm) can be set adjustable | |
| Whole Machine Volume | Whole Machine Volume 8.34 in x 5.27 in x 1.96 in (212 mm x 134 mm x 50 mm) | |
| Total Weight | 1.98 lb (0.9 kg) |
