Features
- New upgraded wireless cloud transmission function
- It adopts three anti-shell design, waterproof, dustproof and shockproof
- On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth
- The instrument is easy to operate, fast to master, no need for professional knowledge
- High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth

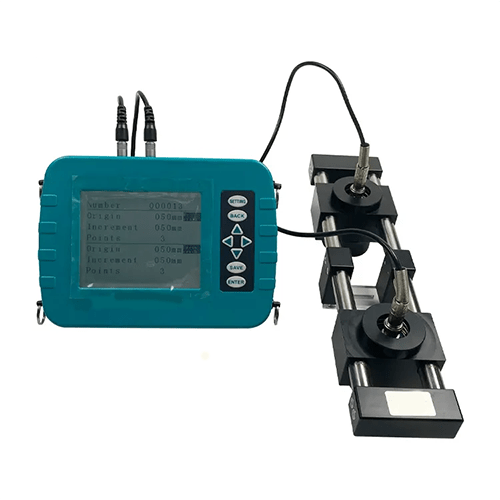

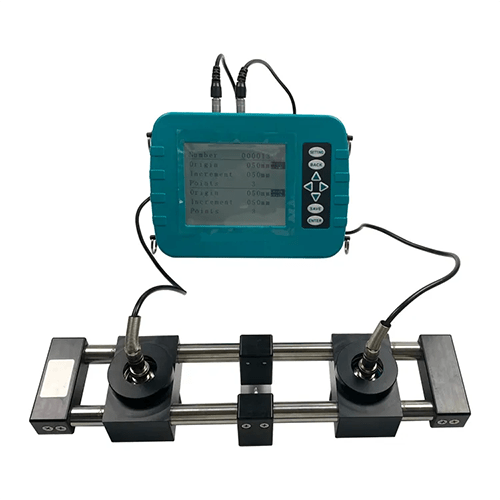

- Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency
Technical Specifications
| Crack Depth Test Range | ≤19.69 in (500 mm) |
| Test Error | ≤ 0.2 in (5 mm) or 2% to 10% of the actual depth |
| Data Storage Capacity | 20000 sets |
| Data Transmission Method | Wireless cloud transmission(optional) |
| Power Supply | Large capacity lithium battery |
| Working Environment | Temperature: -14 °F to 104 °F (-10 ℃ to 40℃) Humidity:<90% RH |
