Features

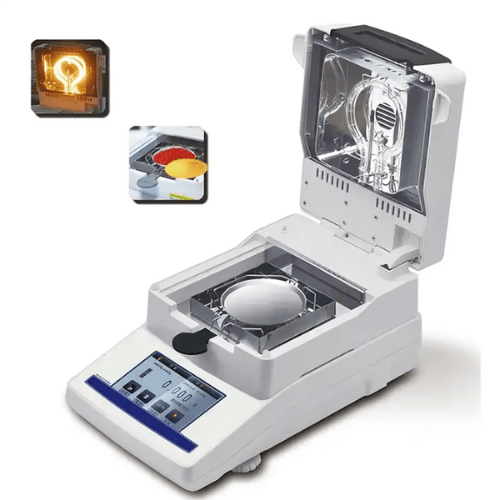

- 400W Halogen Quartz Glass Heater

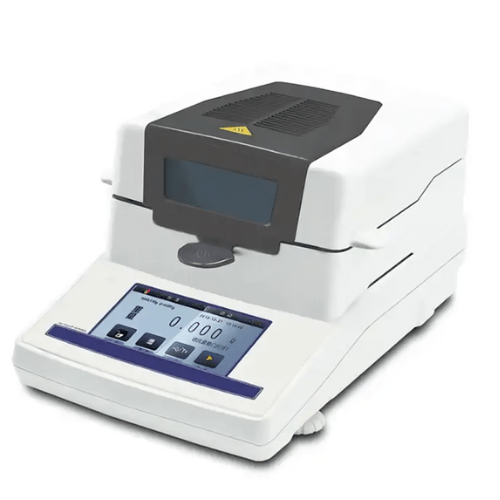

- Touchscreen LCD Display
- Stainless Steel Chamber
- RS232 Interface provided as standard for data output
- Standard package includes 50 sample plates
- Universal power supply 110 V to 250 V provided as standard
- Internal memory for automatic sequence of 15 drying processes
- The last measurement value remains on the display until a new measurement is made
Technical Specifications
| Capacity | 3.88 oz (110 g) |
| Readability | 0.000035 oz (0.001 g) |
| Moisture readability | 0.01 % |
| Dry residual readability | 0.01 % |
| Display | Touch screen LCD |
| Calibration | External |
| Heat Source | Halogen Lamp |
| Temperature sensor | PT-100 |
| Moisture range | 0% to 100% |
| Dry residual range | 100% to 0% |
| ATRO | 100% to 999% |
| ATRO | 0%-999% |
| Time setting | 1 min to 99 min by 1s step |
| Autos top | 0.1% to 9.9% within 1min |
| Heater | 220 V ± 15% 50 Hz, 115 V ± 15%, 400 W |
| Balance | 220 V ± 15% 50Hz, 115 V ± 15%, output DC 9 V |
| Temperature setting | 104 °F to 390.2 °F (40 °C to 199 °C) by 33.8 °F (1 °C) steps |
| Temperature range | 104 °F to 390.2 °F (40 °C to 199 °C) |
| Temperature step | 33.8 °F (1 °C) |
| Pan Size | Φ 3.54 in (Φ 90 mm) |
| Dimensions | 7.87 in x 7.09 in x 14.96 in (200 mm x 180 mm x 380 mm) |
| Gross Weight | 12.78 lb (5.8 kg) |
