Overview

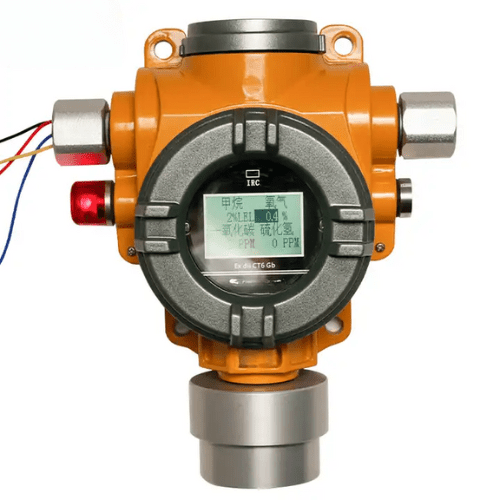

Hospitality Enviro Tech Combustible gas detector is a high performance fixed gas detector developed by our company, which is used for long-term continuous monitoring of combustible toxic and harmful gases in the air. It can continuous detect max 4 kinds of gas and display really timely, detect gas concentration by Natural diffusion. The standard 4 gas are CO O2 H2S and combustible gas, other gas can be combined flexibly.
Features
- Detection accuracy, range adjustable, 4 mA to 20 mA protocol and 485 protocol
- Long life, high sensitivity, low drift, stable and reliable work
- Sensor fault self-check, two-level concentration alarm, with relay output function
- LCD gas concentration digital display and working state display
- With temperature compensation, automatic zero point correction function
- Infrared remote control mode, the detector can be adjusted
Technical Specifications
| Battery | DC 24 V ±10% |
| Detection principle | Catalytic or electrochemical or Infrared |
| Alarm method | Light or sound |
| Sampling | Natural diffusion |
| Resolution | 1% lel 1 ppm or 0.1 ppm |
| Measurable gas | flammable, toxic, harmful gas |
| Applications | Chemical plants, mines, oil refineries, pharmaceutical plants, metallurgical plants, gas stations, liquefied gas stations, brewing, hotel kitchens |
| Measure range and resolution | EX:0% to 100% lel, 1% lel, O2: 0% to 30% vol, 0.1% vol CO:0 ppm to 2000 ppm, 1 ppm or 0 ppm to 1000 ppm,1 ppm H2S:0 ppm to 200 ppm,1 ppm |
| Feature | Support a variety of gas customization (customized diversified products according to different industrial and mining) |
| Output signal | RS485 digital or Two bus wire |
| Explosion-proof number | CE10 1084 |
| Explosion-proof marks | Exd II CT6 |
| Control signal | Switch output, the maximum load 250 V AC 3 A (optional) |
| Standard package | Gas detector, Instruction in English, Certificate, carton package |
| Working environment | -4 °F to 122 °F (-20 ℃ to 50 ℃), 15% RH to 90% RH (No condensation) |
| Product Size | 8.66 in x 7.48 in x 3.54 in (22 cm x 19 cm x 9 cm) |
