Overview

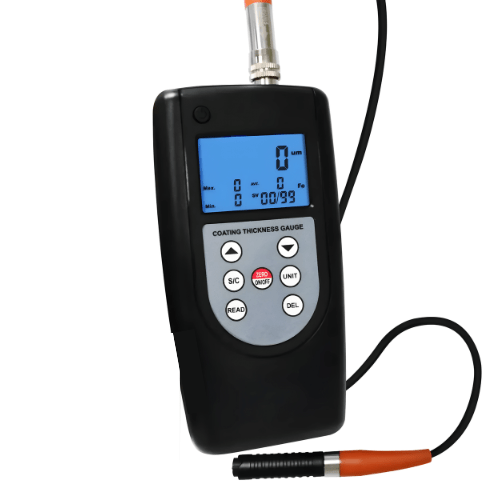

Hospitality Enviro Tech Coating Thickness Meter Gauge Non-Magnetic is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry.
Features
- Can store the new data in 99 groups
- Calculates and displays a statistical analysis of readings (Max, Min, Avg)
- Magnetic induction (F) and eddy current (N) measuring methods
- Metric / imperial system selectable
- Auto memory of calibration value, auto substrate recognition
- Single and Continuous measurement mode
- Use Bluetooth or USB/RS-232 data output to connect with PC (Optional accessories, not included)
- Low battery indicator
- Manual or automatic power off
- Meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS
Technical Specifications
| Display | 4 digits LCD, backlit | |
| Range | 0 µm to 2000 µm / 0 mil to 80 mil | |
| Resolution | 0.1 µm / 1 µm | |
| Accuracy | ±1 %n to 3 %n or ±2.5µm or 0.1mil (whichever is greater) | |
| Min. Radius Workpiece | **F Type: convex 1.5mm/concave 0.98 in (25mm) **NF Type: convex 3mm/concave 1.97 in (50mm) |
|
| Min. Measuring Area | 0.24 in (6 mm) | |
| Min. Sample Thickness | 0.01 in (0.3 mm) | |
| Data Memory | 99 Groups | |
| Operating Conditions | Temperature:32 F to 104 F (0 ºC to 40 ºC) Humidity:10 to 90% |
|
| Power Supply | 4 x 1.5V AAA (UM-4) | |
| Battery Dimensions | 5.51 in x 2.83 in x 1.34 in (140 mm x 72 mm x 34 mm) | |
| Weight | 0.47 lb (215 g) | |
