Overview

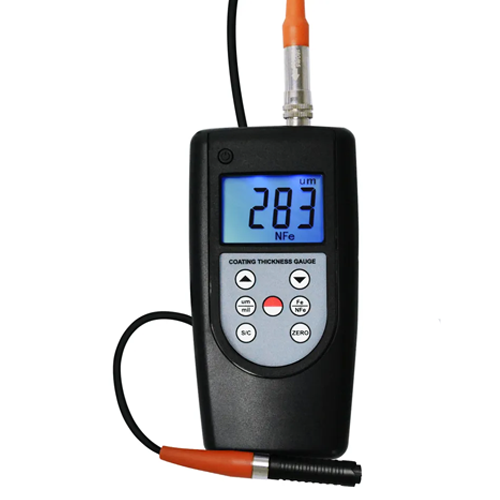

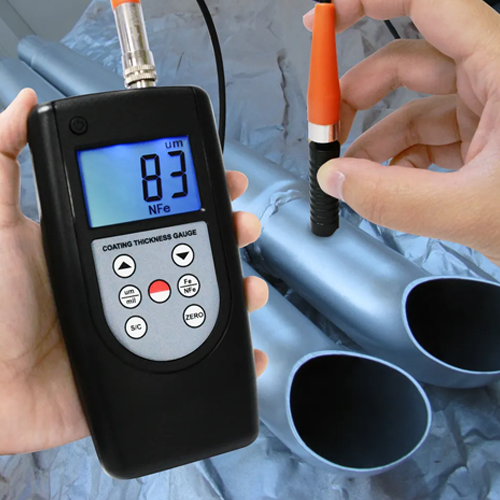

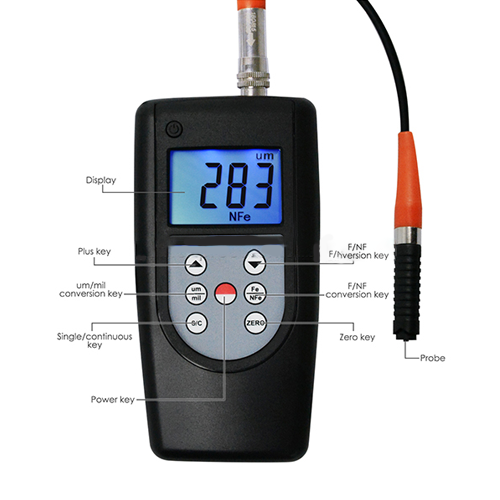

Hospitality Enviro Tech Coating Thickness Meter Gauge F & NF Magnetic Induction measures the thickness of coatings on various surfaces using a magnetic induction method. It provides accurate measurements for both ferrous and non-ferrous coatings without damaging the material.
Features
- Magnetic induction (F) and eddy current (N) measuring methods
- Metric / imperial system selectable
- Manual or automatic power off
- Auto memory of calibration value, auto substrate recognition
- Single and Continuous measurement mode
- Wide measuring range and high resolution
- Use USB/RSto232 data output to connect with PC (Not included in the set)
- Provide Bluetooth data output choice
- Low battery indicator
- Manual or automatic power off

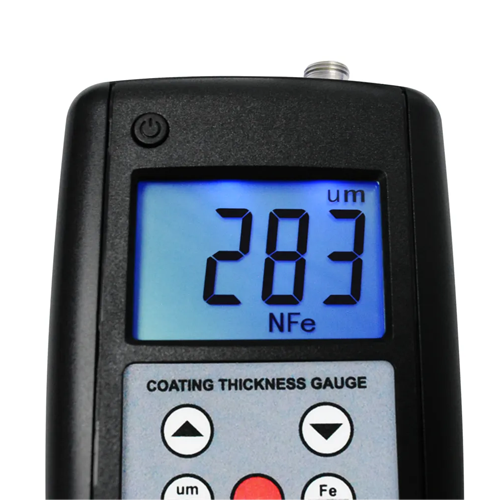

- Digital backlit display gives exact reading with no guessing or errors
- Meets the standards of both IO2178 and ISO 2361 as well as DIN, ASTM and BS
Technical Specifications
| Display | 4 digits LCD, backlit |
| Range | 0 to 2000µm/ 0 to 80 mil |
| Resolution | 0.1µm / 1µm |
| Accuracy | ±1 to 3%n or ±2.5µm or 0.1 mil (whichever is greater) |
| Min. Radius Workpiece | F Type: 0.05906 in (convex 1.5 mm)/ (concave 0.98425 in 25 mm)
NF Type: 0.11811 in (convex 3 mm)/ 1.9685 in (concave 50 mm) |
| Min. Measuring Area | 0.23622 in (6 mm) |
| Min. Sample Thickness | 0.01181 in (0.3 mm) |
| Operating Conditions | Temperature: 32 ºF to 104 ºF (0 ºC to 40ºC)
Humidity:10 to 90%RH |

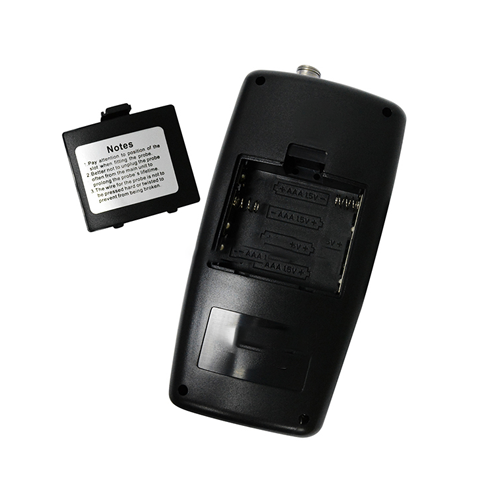

| Power Supply | 4 x 1.5V AAA (UMto4) |

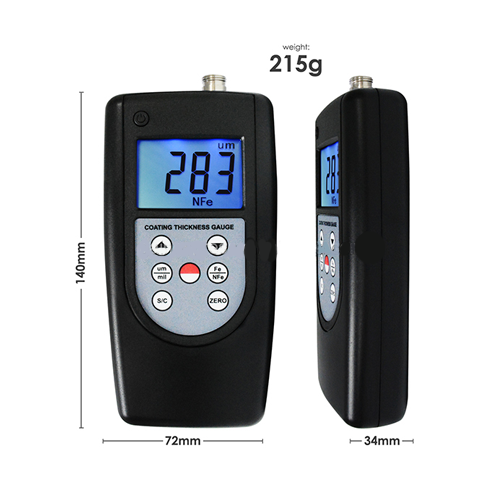

| Battery Dimensions | 5.51181 in x 2.83465 in x 1.33858 in (140 mm x 72 mm x 34 mm) |
| Weight | 0.474 lb. (215 g) |
