Overview

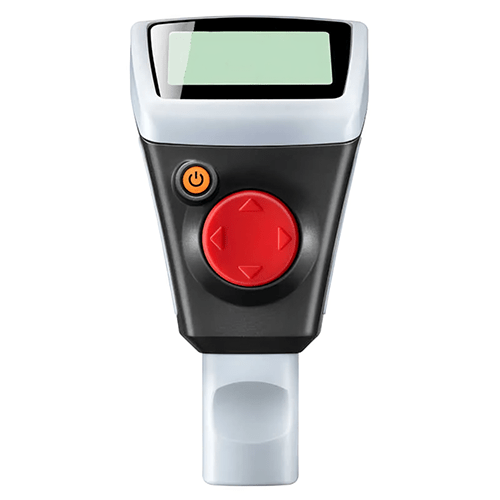

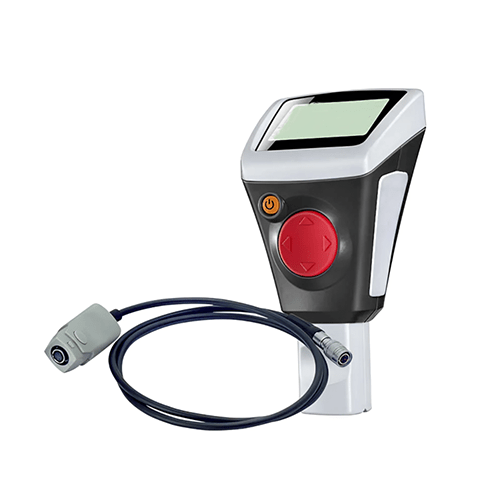

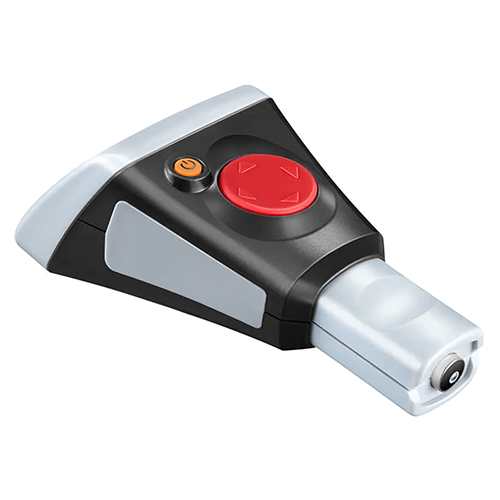

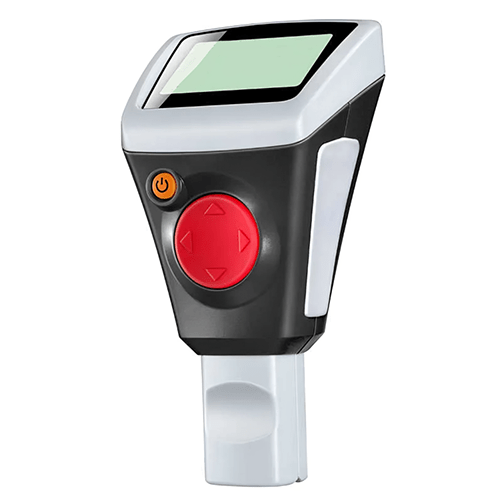

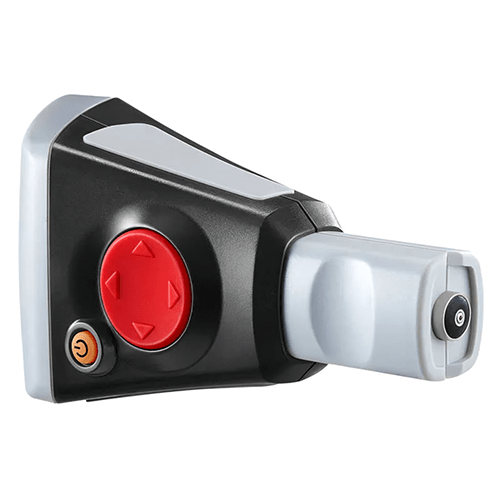

Hospitality Enviro Tech Coating Thickness Gauge Meter has dual technology features, including automatic selection of Magnetic Induction and Eddy Current Measurement Techniques. It has accuracy, sensitivity and multi-function features. Its Bluetooth function makes the measuring data easily transferred to PC for editing and Storage.
Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Menu operation system
- Two working modes: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One point calibration, two points calibration and basic calibration easily
- Delete single readings and all group readings easily
- Low battery, error indication
- Memory for 2500 readings (50 GROUP readings)
- 4 levels of battery indication
- Error indication
- Bluetooth interface
- Easily adapt to lighting conditions with 8 levels of backlight
Technical Specifications
| Sensor Probe | F; N |
| Working Principle | F: Magnetic induction; N: Eddy current principle |
| Measuring Range | 0 to 2000 µm |
| Guaranteed Tolerance (Of Reading) | (± 2%+2) µm |
| Repeatability | (± 1%+1) µm |
| Low Range Precision | 0.1 µm |
| Minimum Curvature Radius | F: 0.06 in (1.5 mm); N: 0.12 in (3 mm) |
| Diameter of Minimum Area | F: 0.28 in (7 mm); N: 0.2 in (5 mm) |
| Basic Critical Thickness | F: 0.02 in (0.5 mm); N: 0.01 in (0.3 mm) |
| Dimension | 4.72 in x 2.36 in x 1.57 in (120 mm x 60 mm x 40 mm) |
| Weight | 0.27 lb (120 g) |
