Overview

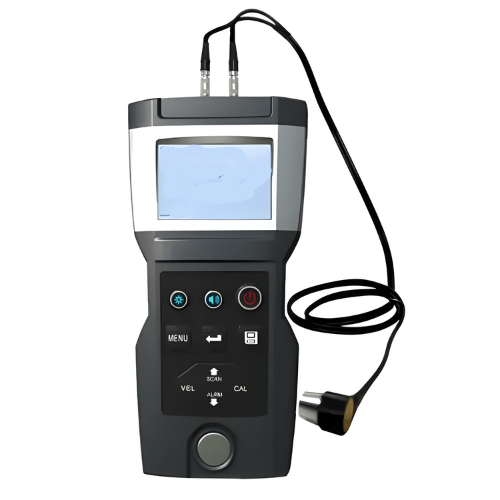

Hospitality Enviro Tech Coating Thickness Gauge is a high-precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, it can measure the thickness of various materials with accuracy up to 0.001 millimeters, or 0.0001 inches. It is adapted to measure the thickness of good conductors for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass-fiber and so on.
Features
- High precision timing chip & V-Path model for accuracy
- Real-time Temperature Compensation for one-time probe calibration
- Thru-paint measurement in Standard Version
- Bluetooth & Mini-USB interface for printing and communication
- Upgradable host software for versatility
- Compatible with dual and single element probes
- Suitable for measuring metal plates and machining parts
Technical Specifications
| Measure Range | 0.75 mm to 400 mm (Steel) |
| Resolution | 0.001 mm / 0.0001 in |
| Measuring Period | 4 times per second |
| Calibration Mode | Probe Calibration & Two Point Calibration |
| Measurement Mode | P-E, I-E, E-E |
| Measuring Mode | Single point, scan, min/max capture, differential, alarm |
| Display | English / Chinese selectable, FSTN LCD Display with backlight |
| Communication | Bluetooth & Mini-USB interface, virtual serial port protocol |
| Power Supply | 3.7 V Li-Ion chargeable battery |
| Shell Material | ABS & PC alloy |
| Sound Velocity Range | 1 m/s to 19999 m/s |
| Probe Frequency | 2 MHz,3 MHz,5 MHz,7.5 MHz |
| Calibration Block | 4.000 mm (Steel) |
| Gain Adjustable | 16 Stages |
| Data Storage | 1000 measurements, including thickness, sound velocity, time, etc. |
| Display Content | Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc. |
| Optional portable Bluetooth thermal printers | |
| Power Off | Timeout power off, low battery power off |
| Storage Temperature | -22 °F to 140 °F (-30 °C to 60 °C) |
| Usage Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Size | 6.1 in x 3.1 in x 1.4 in (157 mm x 78 mm x 37 mm) |
| Weight | 0.57 lb. (260 g) |
