Overview

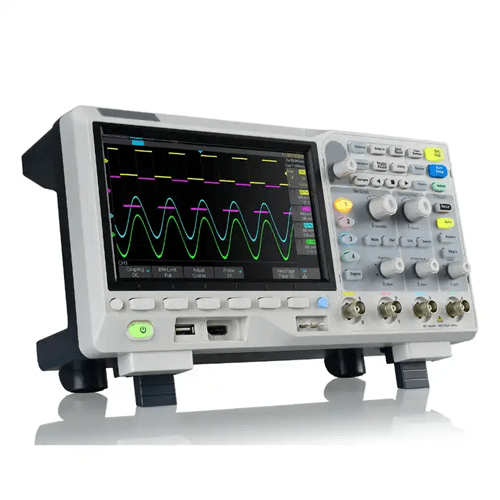

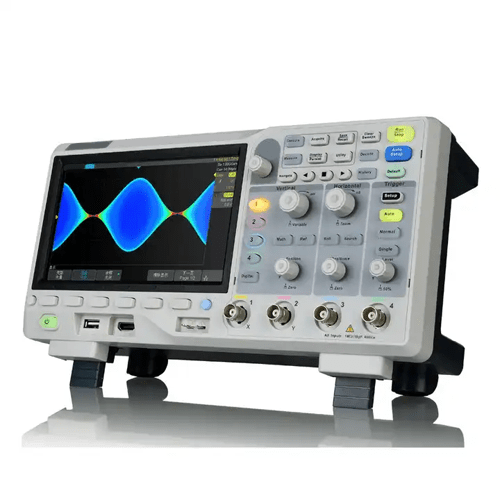

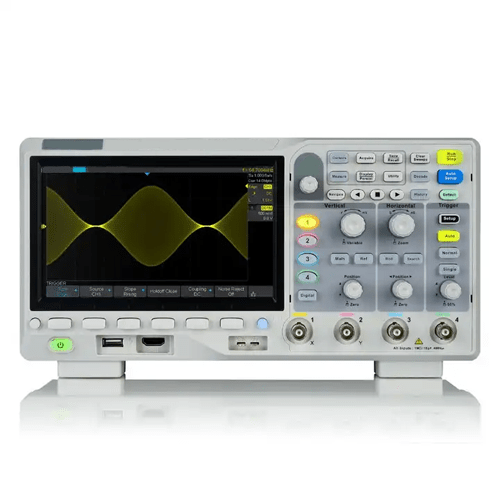

Hospitality Enviro Tech channels digital oscilloscopes with two and four channel models, featuring 200 MHz analog bandwidth and 1 GSa or maximum sample rate in the two-channel version. The four-channel model, available in 100 and 200 MHz, boasts two ADCs and memory modules. With all channels active, each operates at 500 MSa/sand 7 Mpts record length, while a single active channel per ADC achieves 1 GSa/s and 14 Mpts. The user-friendly front panel design simplifies operation, and the SPO technology ensures high signal fidelity and low system noise.
Features
- Bandwidth Options: 100 MHz and 200 MHz configurations available.
- Two-channel: 1 GSa/s ADC; Four-channel: two 1 GSa/s ADCs.
- Flexible Sampling: All channels at 500 MSa/s
- single active channel at 1 GSa/s.
- Utilizes advanced Super Phosphor Oscilloscope technology.
- Capture Speed: Up to 400,000 wfm or s in sequence mode.
- Versatile Display: 256-level intensity grading and color display modes.
- Ample Record Length: Up to 14 Mpts for detailed analysis.
- Digital Trigger System with intelligent trigger options.
- Triggers and decodes IIC, SPI, UART, and more.
- Segmented acquisition, history record, 1 Mpts FFT, and more.
Technical Specification
| Bandwidth | 100 MHz |
| Channels | 4 Channels |
| Real Time Sampling Rate | 1 GSa/s |
| Memory Depth | 7 Mpts or CH (not interleave mode); 14 Mpts or CH (interleave mode) |
| Decode Functions | IIC, SPI, UART or RS232, CAN, LIN |
| Screen | 7 in (17.7 cm) TFT to LCD (800 pixels x 480 pixels) |
| Weight | Without package 5.7 lb (2.6 kg)
With package 8.3 lb (3.8 kg) |
