Hospitality Enviro Tech Channel Industrial Temperature Data Logger

Overview

Hospitality Enviro Tech channel industrial temperature data logger uses a 32 bit microprocessor to collect data quickly, and with 5 in (127 mm) TFT screen display for easy reading. It supports K type, J type, E type, T type, N type, S type, R type and B type thermocouple. With multiple display modes and simple operation, it’s suitable for production, R&D needs. It can be widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical, electricity and more fields.

Feature

• High accuracy
• -328 ℉ to 2502 ℉ (-200 ℃ to 1372 ℃) wide measuring range
• 1 s record interval
• Built in 8G large memory, supports U disk file export
• 5 in (127 mm) TFT color screen, 6 digits display
• With 854 x 480 resolution
• Easy to read, clear at a glance
• With comfortable buttons for easy setting and operation

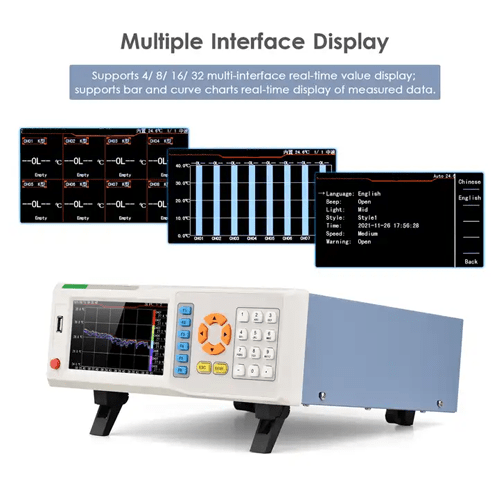

• Supports 4, 8, 16, 32 multi-interface real-time value display
• Supports curve and bar charts real-time display of measured data
• Quick Response and Stable Performance
• Adopts advanced 32 bit microprocessor, features quick response
• Supports multi-channel data collecting, recording, display and alarm
• Support Thermocouples K, J, E, T, N, S, R and B
• Each channel supports individual parameters settings
• Supports arbitrary naming
• 8 channels per module, supports a maximum 64 channels
• The voltage between each channel can be as high as 400 V
• With strong anti-interference ability
• Each channel can set high and low alarm values
• With sound and light alarm functions
• Widely used in lighting appliances, power tools, household appliances
• Widely used in motors, electric heating appliances, medical, petroleum
• Widely used in chemical, metallurgical, electricity and more fields

Technical Specifications
