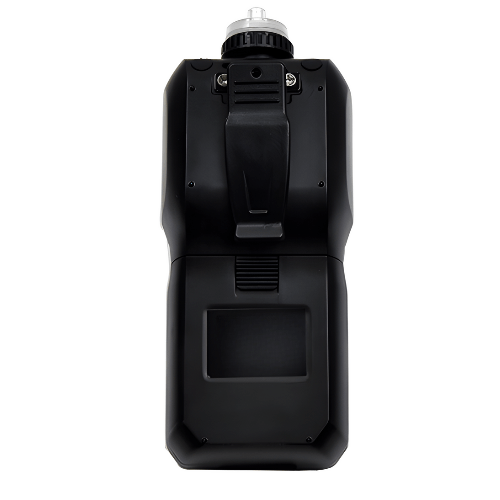

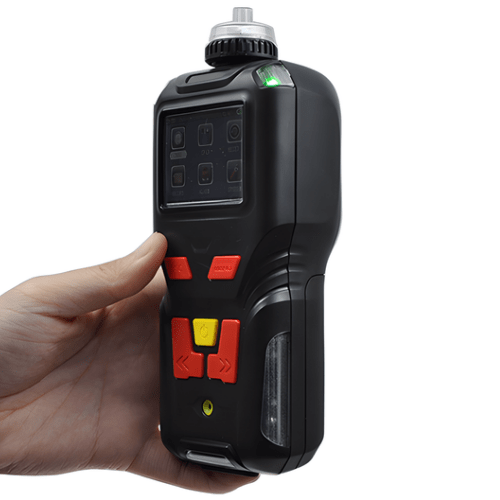

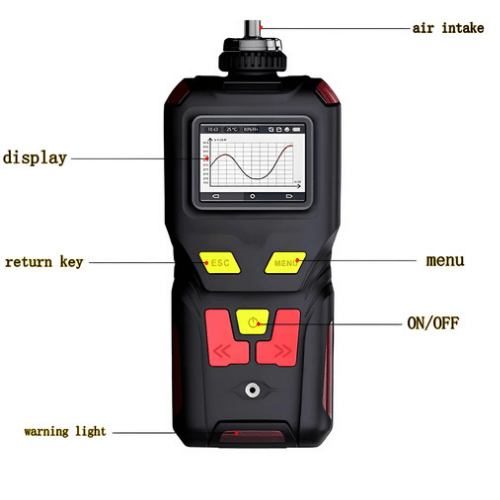

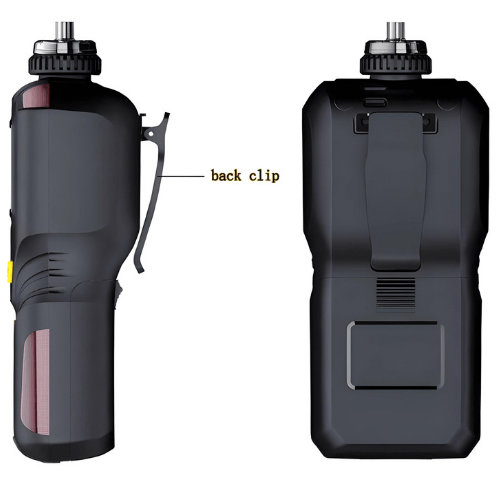

Hospitality Enviro Tech Carbon Dioxide Gas Detector

Overview

Hospitality Enviro Tech carbon dioxide gas detector adopts 2.31-inch high-definition color screen for real-time display and adopts gas sensors of well-known brands in theindustry.It is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarmif the measurement exceeds the limit. It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage orhighconcentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kind’s ofdetected gases.



Features

·         Built-in pumping measurement, integrated water vapor and dust filter

·         Quick response

·         Support long-distance sampling

·         Built-in water vapor and dust filter high humidity

·         The sampling distance is larger than 32.8 ft (10m)

·         The special gas circuit design can be directly detected

·         Rich man-machine interface

·         Displays real-time concentration, alarm, time, temperature and humidity

·         Large-capacity data storage function, support multiple storage methods

·         Standard 100,000 data storage capacity can be customized

·         Support real-time storage, timing storageor savedata

·         Support this machine to view and delete data

·         Uploaddata to the computer through USB interface

·         High temperature gas detection

·         High-temperature sampling and cooling filter

·         Detect flue gas with a temperature of 400 degrees

·         Higher temperature gas detection can be customized

·         Three display modes can be switched

·         Concentrations of several gases are displayed simultaneously

·         Single-channel gas concentration is displayed circularly

·         Graphic displayReflect the trend of gas concentration

·         Data recovery function

·         5-level accurate power display

·         The detector can work normally when charging

·         Support real-time detection or timing detection

·         Pump can be turned off when not testing

·         Multiple alarm methods

·         Zero-point automatic tracking

·         Wide working temperature

·         Logging

·         Record calibration log, maintenance log, troubleshooting countermeasures

·         Protection grade reaches IP65

·         Explosion-proof and shockproof



Technical Specifications

Detected Gas	Methane CH4 Carbon dioxide CO2
Scope of Detection	0 Vol to 5 Vol, 50 Vol, 100% Vol, 100% LEL, 5000 ppm, 10000 ppm
Resolution	0.01 ppm, 0.01% vol, 0.01% lel
Detection Principle	Infrared principles
Detection Method	Built-in pump suction, flow rate 500ml/min
Display Method	2.31 in 320 in x 240 in high-definition color screen display, 5-buttonsoperation
Detection Accuracy	≤±2% F.S
Linearity	≤±2%
Repeatability	≤±2%
Alarm Method	Sound and light alarm, vibration alarm, visual alarm, sound and light + vibration + visual alarm, shut off the alarm
Response Time	≤20 S
Recovery Time	≤30 S
Power Supply	DC 3.6 V
Battery Capacity	3.6 VDC, 4500 mA large-capacity rechargeable polymer battery, with overcharge,
Humidity Measurement	0 RH to 100% RH, Accuracy 3% RH
Data Storage	Standard configuration of 100,000 data capacity, support history viewing, deletion or data export, free host computer communication software. The storage function is off by default, and can be set to on, and the storage time interval can be set arbitrarily.
Communication	USB (charging and communication)
Protection Level	IP65, dust and splash proof

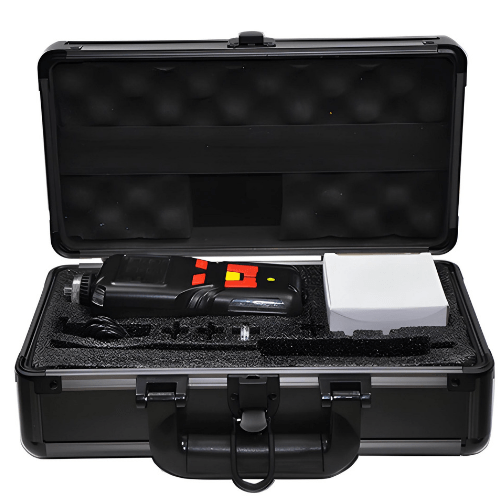

Standard Accessories	Manual, certificate of inspection and warranty card, USB charger (including data cable), aluminum alloy box, alligator clip, host computer communication software, 1 PC humidity dust filter
Optional Accessories	Temperature and humidity measurement function, 1.2 m retractable sampling probe (1-10 m hose, standard length 1 m), high temperature sampling probe, high temperature and high humidity pretreatment system, spare humidity dust filter.
Application Occasions	Petroleum, chemical, pharmaceutical, environmental protection, flue gas analysis, air treatment and other occasions where gas concentration needs to be detected.
Use Environment	Temperature -40  ℉ to +158  ℉ (-40 ℃ to +70 ℃) Relative humidity ≤0 to 99% RH (built-in filter can be used in high humidity or high dust environment)
Sample Temperature	-40 ℉ to +158 ℉ (-40 ℃ to 70 ℃) optional with extra charge high temperature sampling probe, can detect the flue gas concentration of 400 degrees or higher
Temperature Measurement	-40 ℉ to 248 ℉ (-40 ℃ to + 120 ℃) Accuracy: 32.9 ℉ (0.5 ℃)
Dimensions	6.3 in x 2.8 in x 1.1 in (160 mm x 70 mm ×28 mm)L×W×H
Weight	0.66 Ib (0.30 kg)
